AK-40GLJ Grenade Launcher
3D View

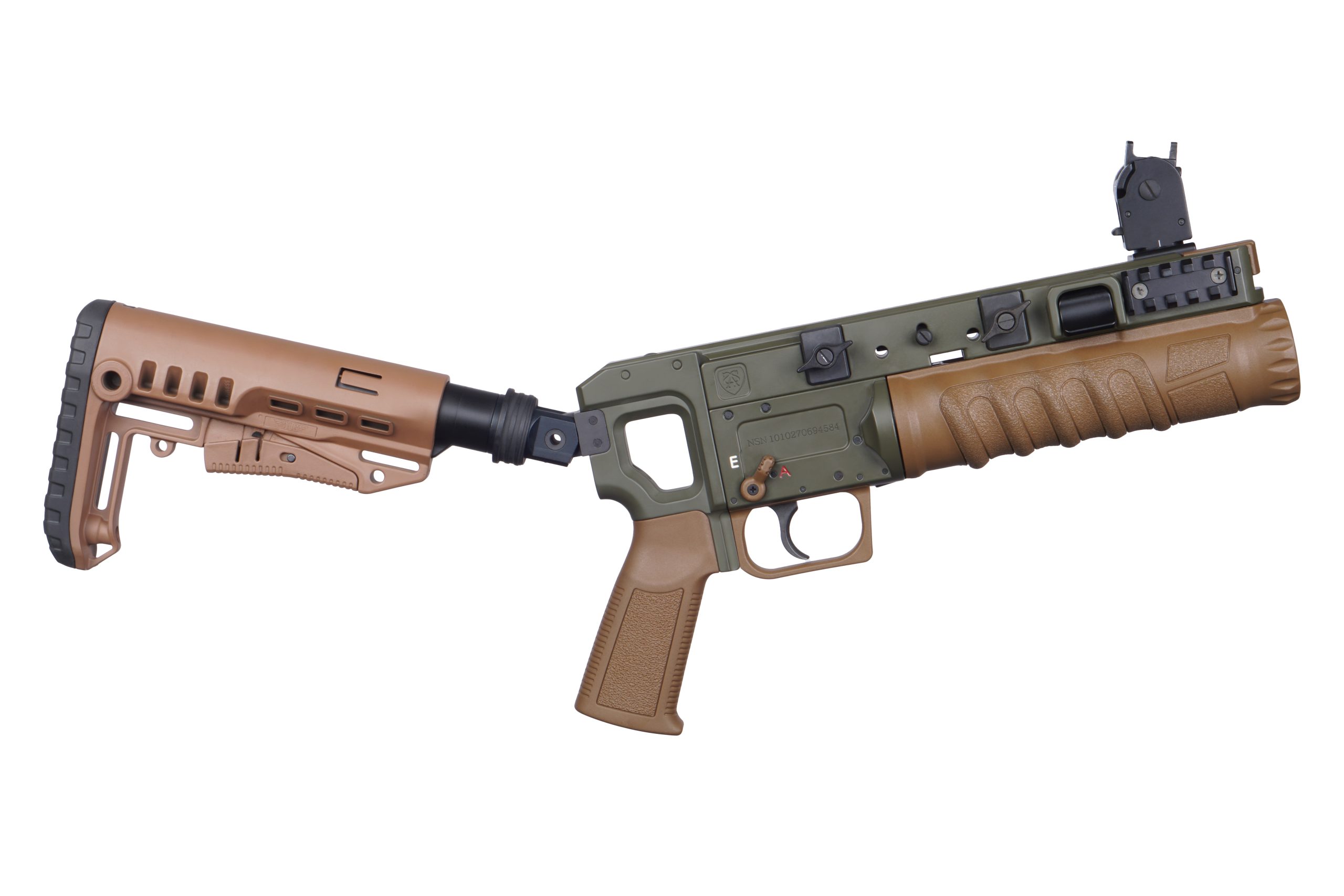

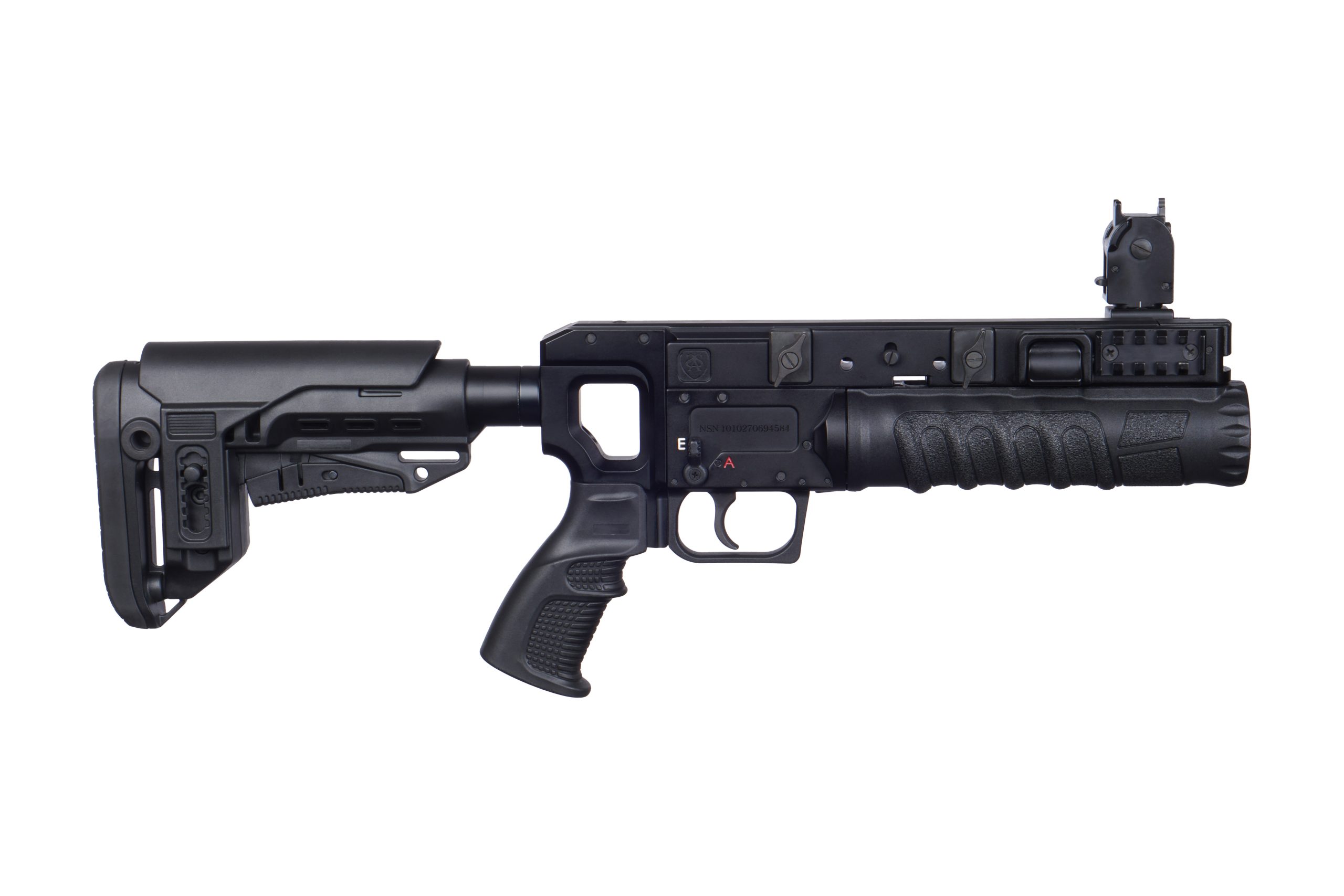

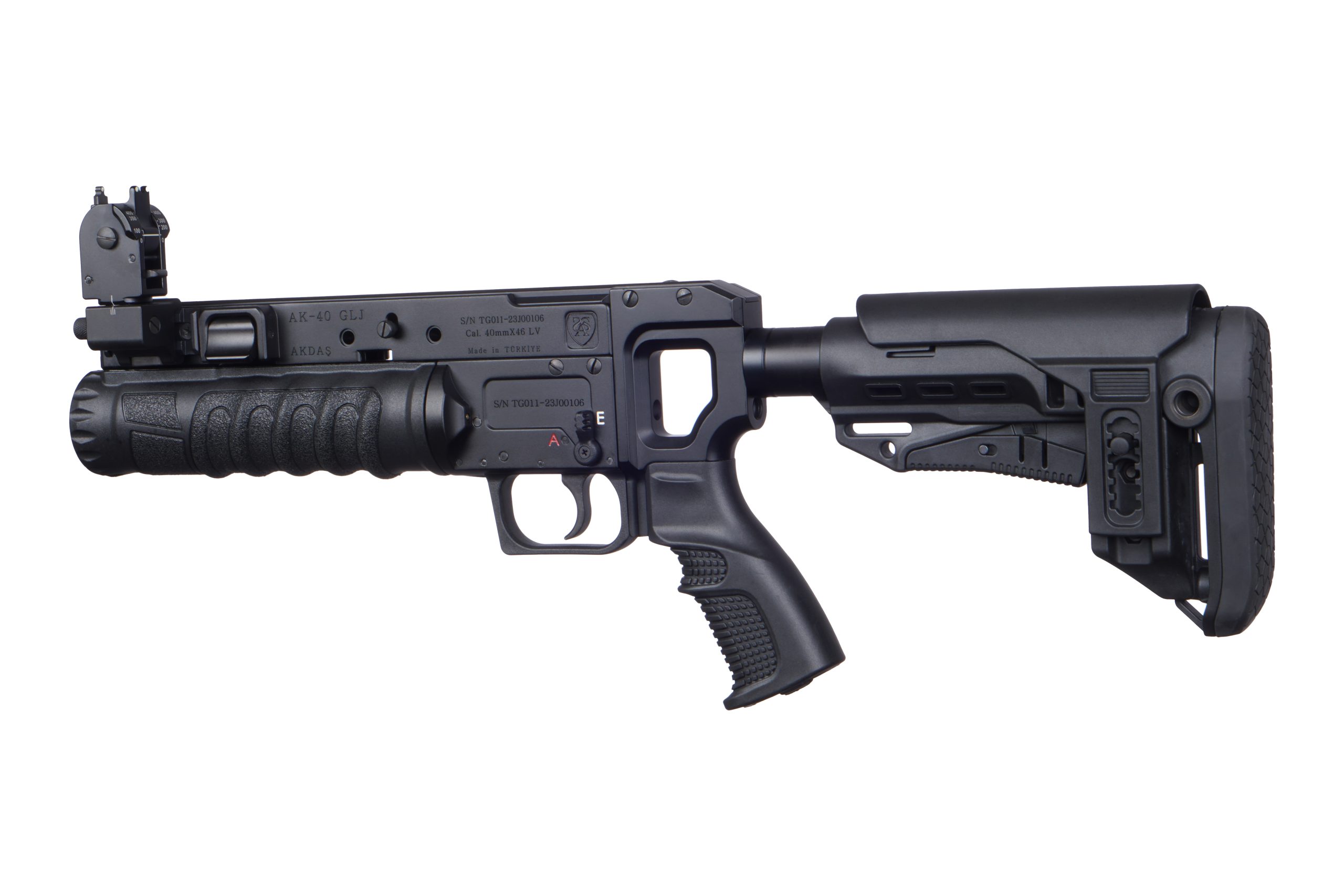

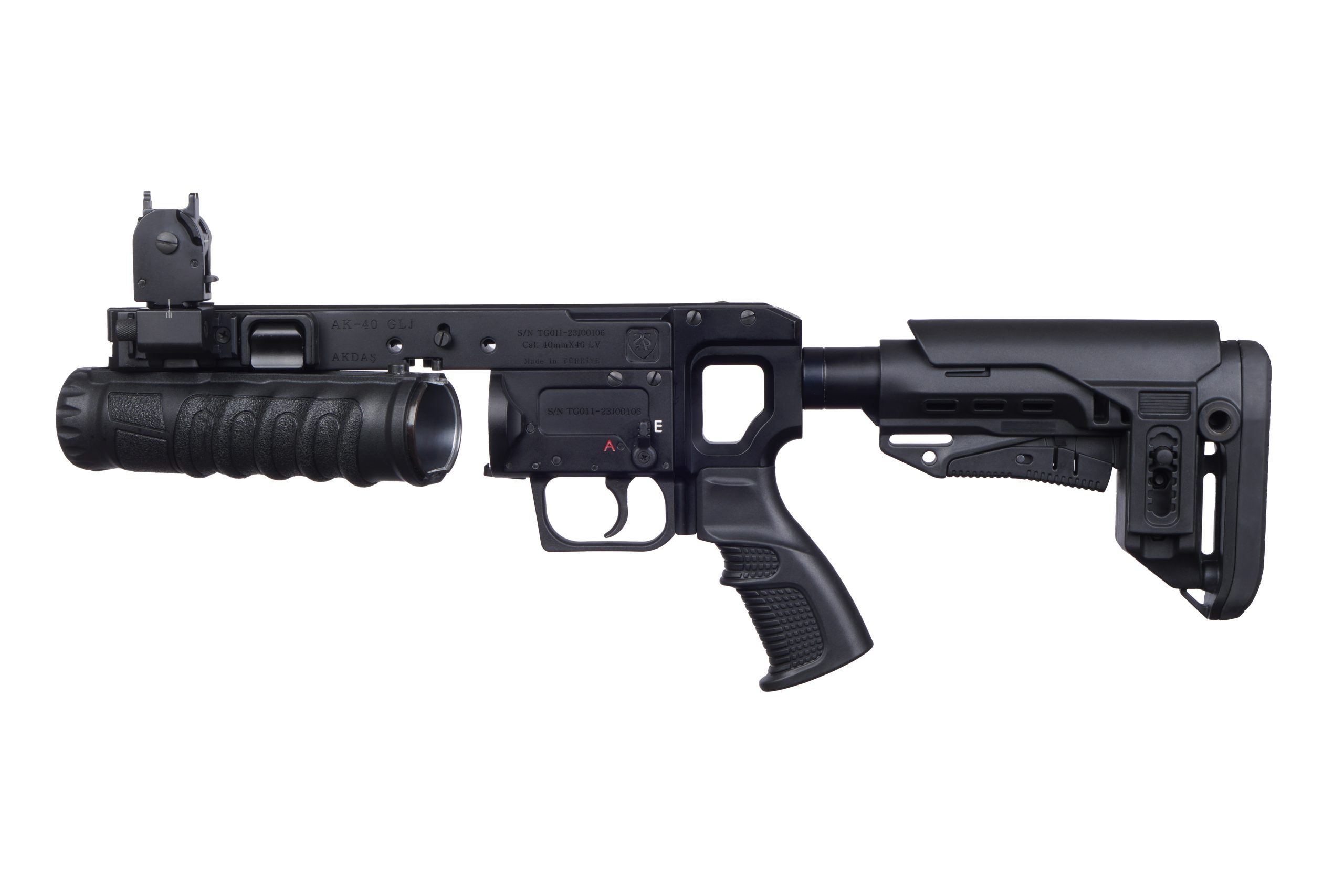

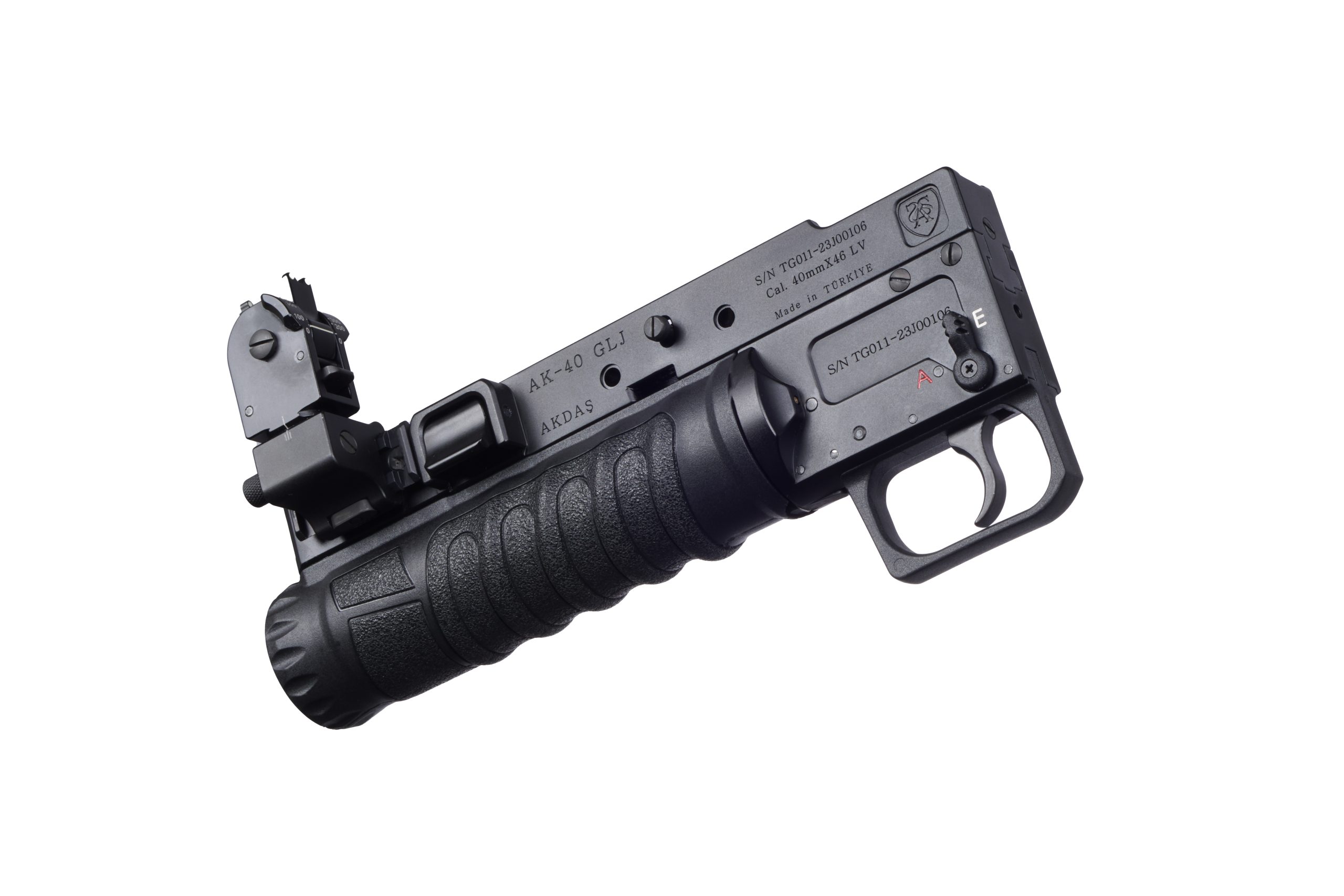

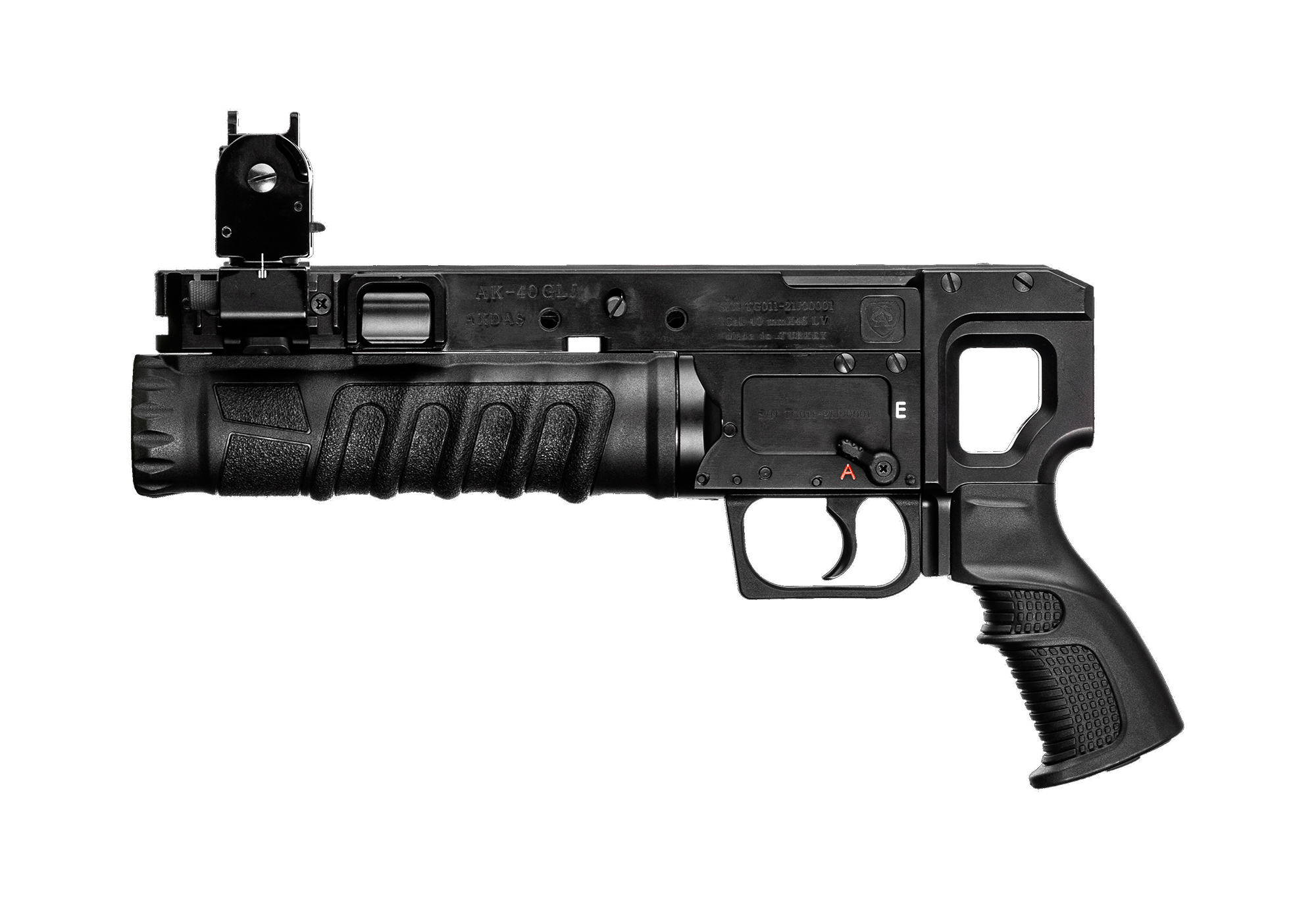

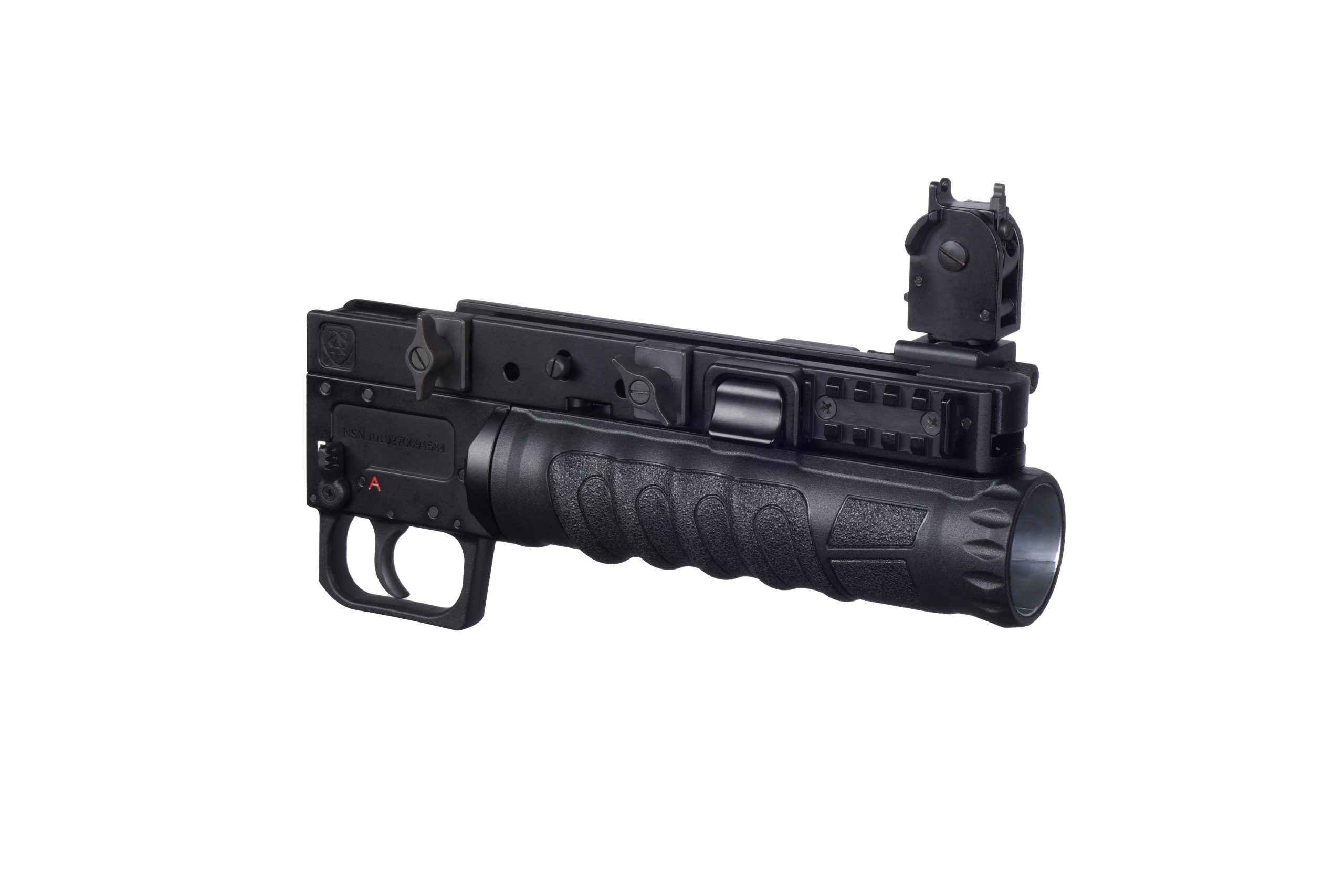

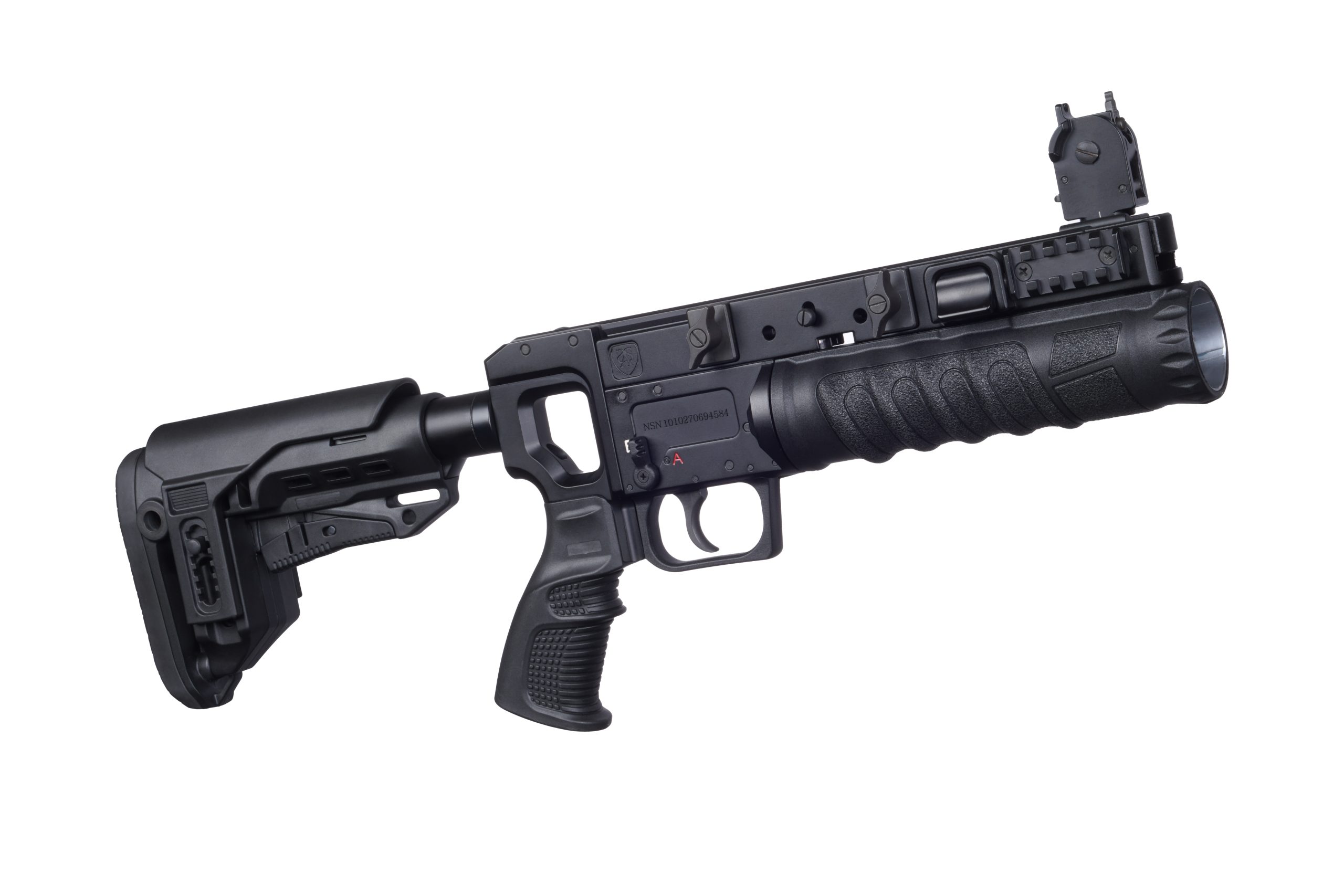

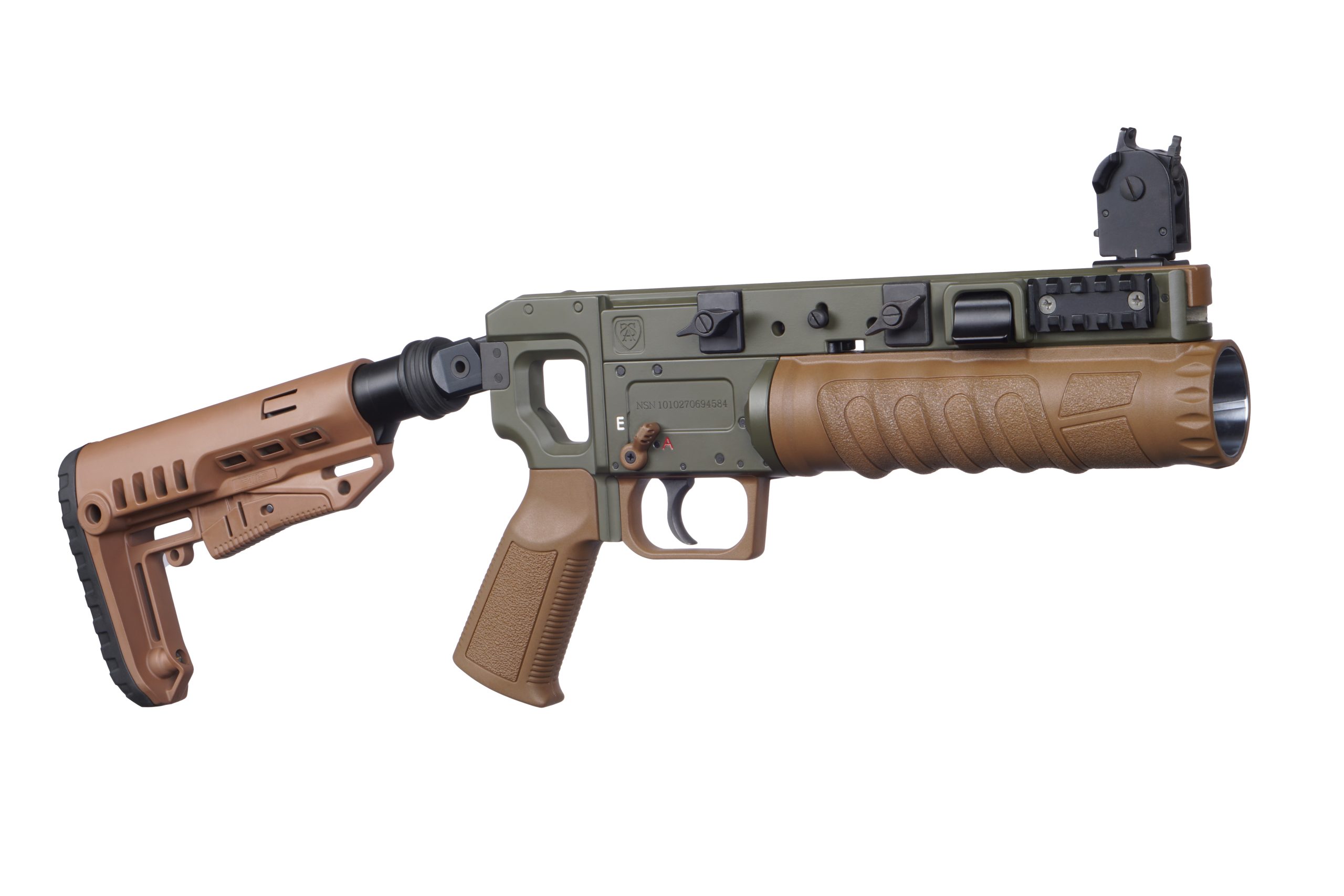

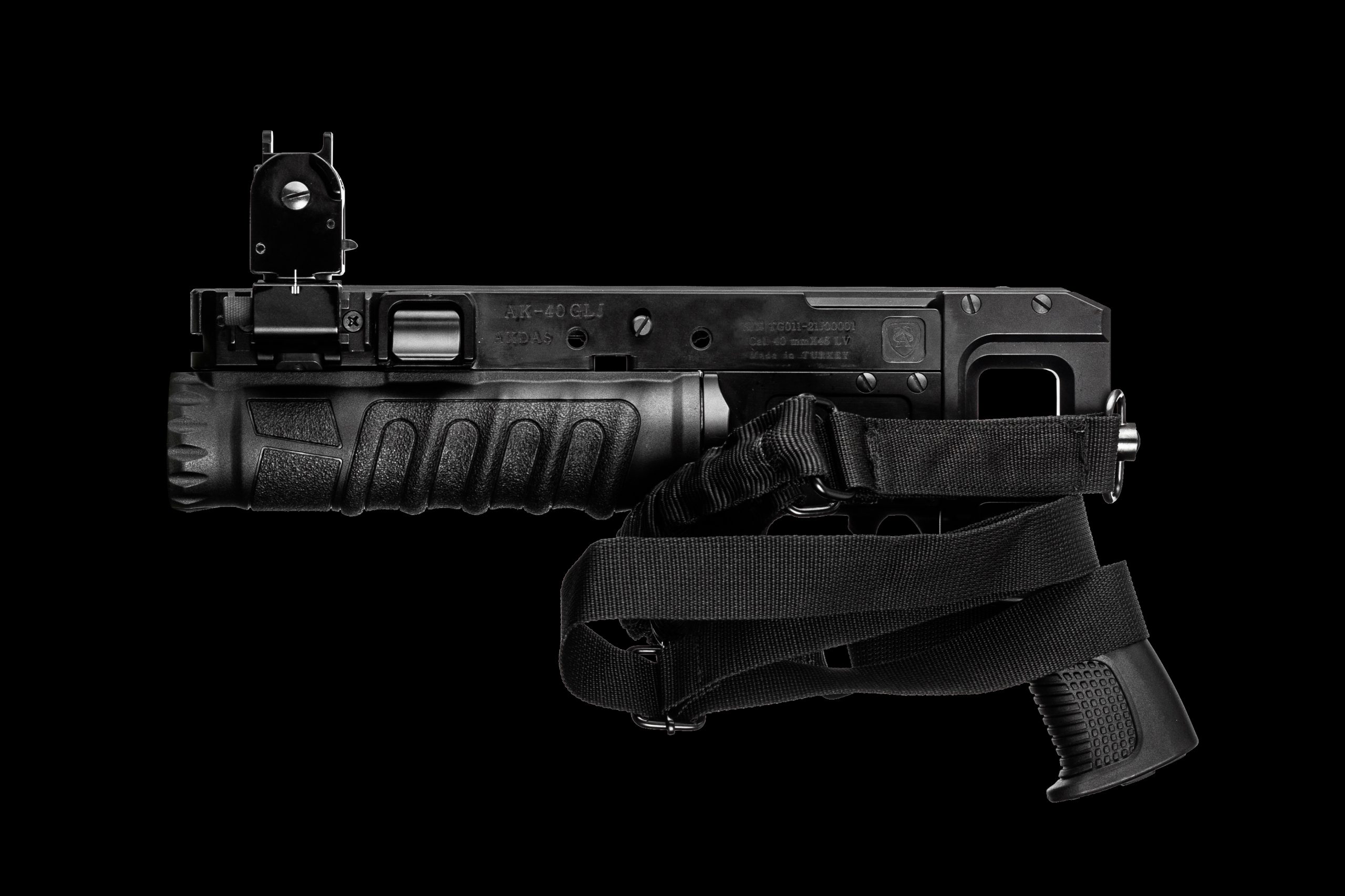

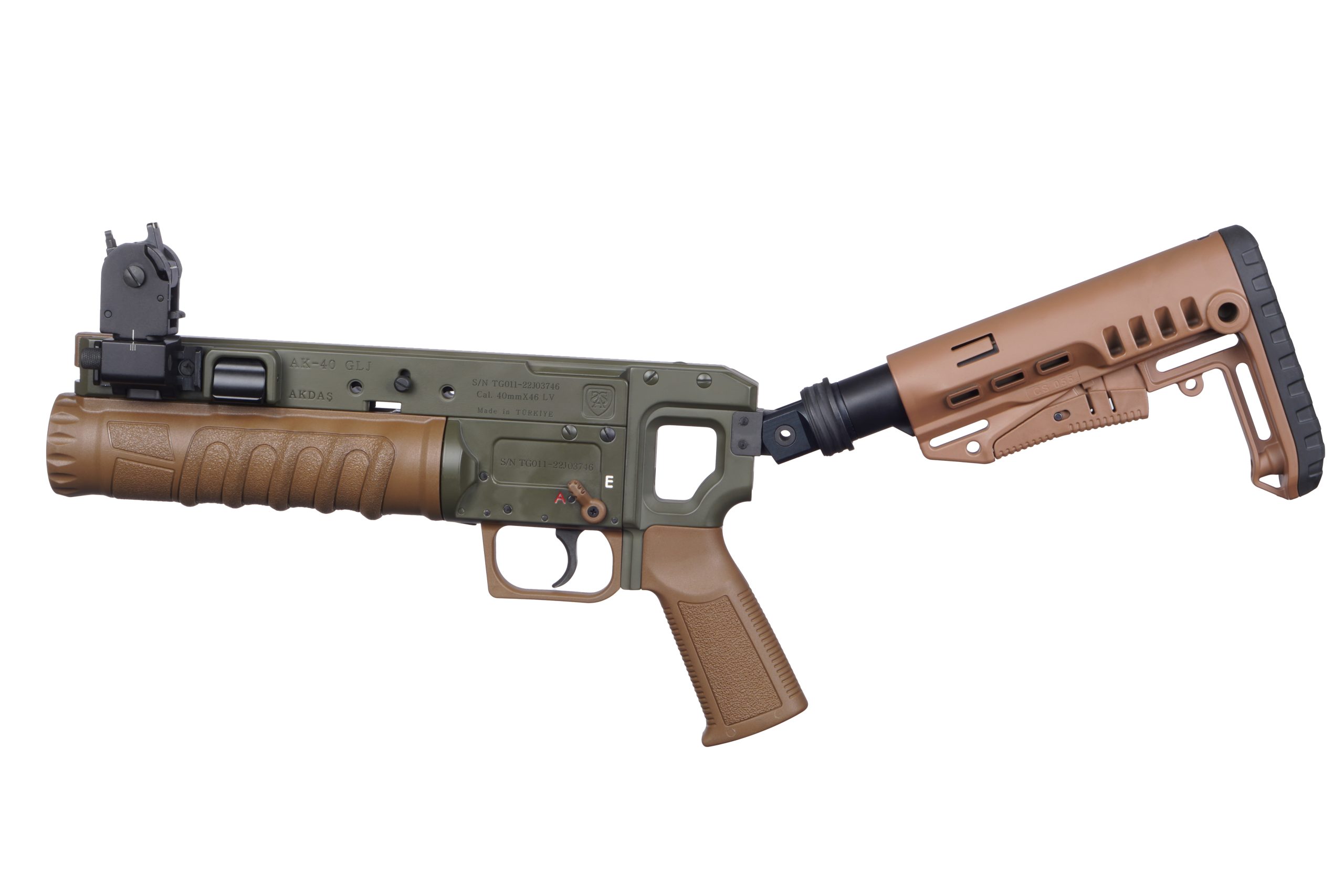

AK-40GLJ can be used both as a standalone weapon with its telescopic stock or mounted underneath a standard infantry rifle. Designed for modern combat needs, it offers easy handling, dual-side loading, and ambidextrous safety operation.
Made with high-strength steel and a chrome-lined barrel, the AK-40GLJ ensures durability and consistent performance. It supports a wide range of 40x46mm low-velocity grenades, including less-lethal ammunition, and features an adjustable sight system effective up to 400 meters.
BASIC SPECIFICATIONS
- Light and ergonomic design for ease of use and transport
- Unique design for right-hand and left-hand use (safety latch and double-sided loading)
- In addition to the utilization by attaching to an infantry rifle, capability of using as a standalone grenade launcher gun comprising a telescopic stock
- Double-sided indicator that shows whether the grenade launcher is loaded or unloaded Mechanical sight system with night firing capacity and ability to be assembled on both sides
- High wear resistant, hard chrome coated barrel with mid carbon alloy that provides long barrel life span Picatinny rails on top and sides that allow additional equipment
MAIN PARTS OF THE GUN
- Barrel Assembly
- Lower Receiver Assembly
- Upper Receiver Assembly
- Stock Assembly
- Sight Assembly
Technical Specifications
-
Caliber
40 mm -
Barrel Length
191 mm (7.5") -
Total Length standalone (telescopic stock open)
620 mm (24.4") -
Total Length standalone (telescopic stock closed)
545 mm (21.5") -

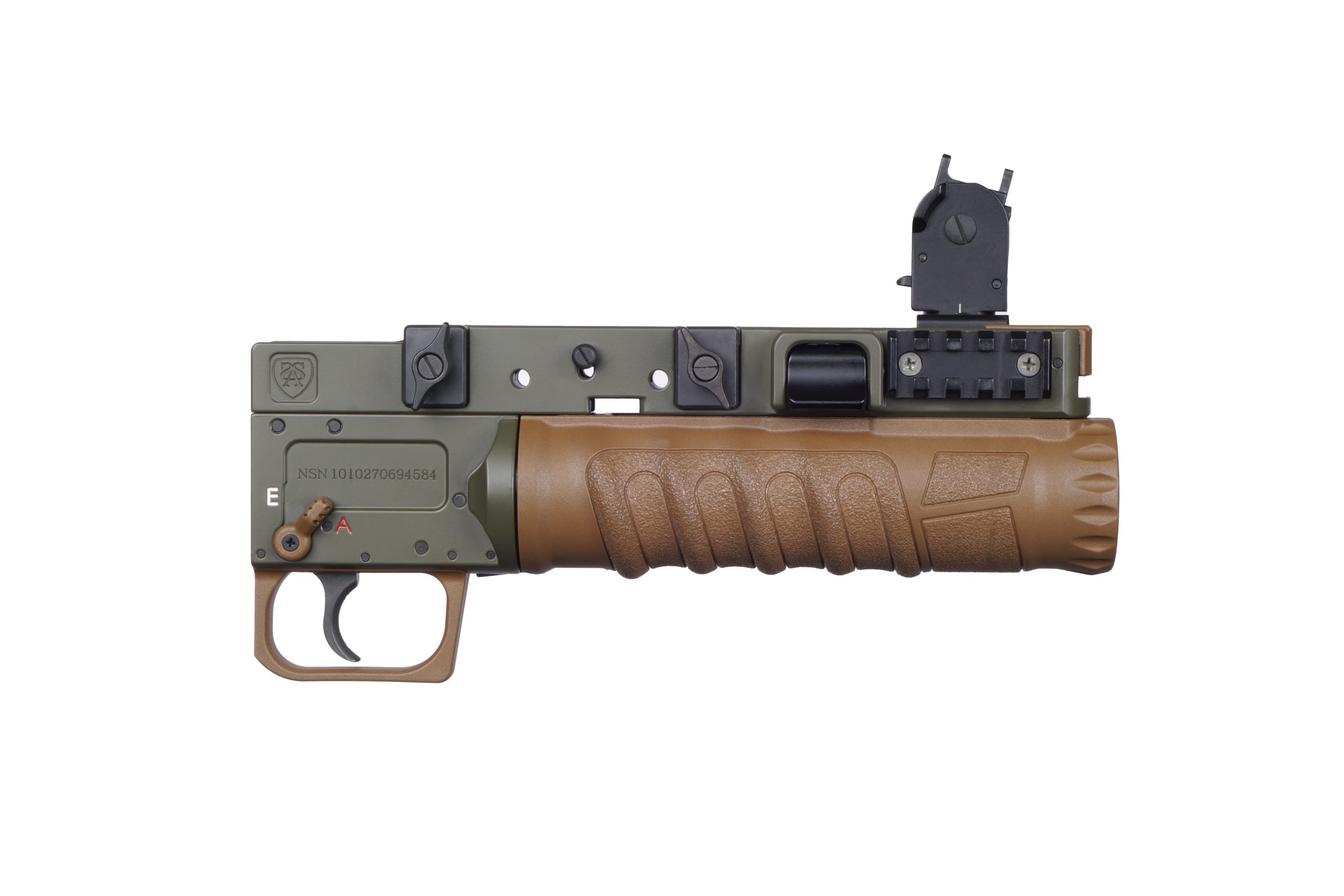

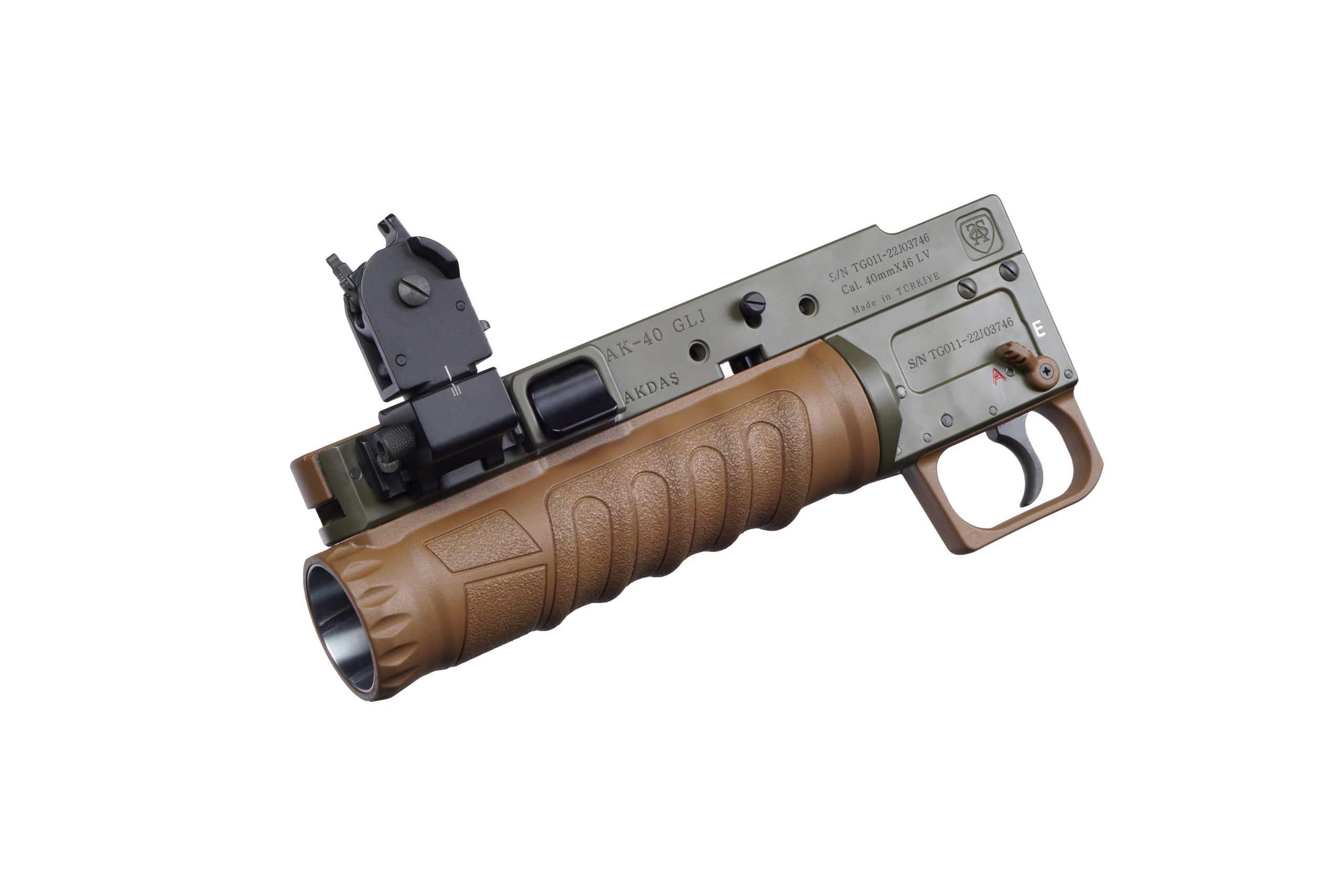

Total length attached to assault rifle
270 mm (10.6") -
Heigth (With Stock Grip / Under Barrel)
190 mm (7.5") / 115 mm (4.5") -
Width
60 mm (2.36") - 80 mm (3.15") with Man.Sigth -
Weight (standalone-empty)
2450 gr -
Weight (attached to rifle with maual sight-empty)
1600 gr -
Sight system
100-400 m (100 m intervals) -
Shooting mode
Single shot(both side loading & positioning wedge) -
Trigger
Double Action -
Shooting velocity
5-6 rounds / minute -
Muzzle velocity
Minimum 75 m/s (+10m/s) -
Effective Range
400 m -
Trigger Pull Force
30 - 60 Newton -
Cocking Force
55 - 120 Newton -
Barrel Profile
SAE4140 Steel, 6 Groves RH twist 1/48" -
Barrel life span
5000 rounds -
Shooting pattern
Into 10 m diameter at 200 m -
Nato Stock Number
1010270694584 -
Type Of Ammunition
40x46 mm new and old generation low velocity (LV) ammunition of any type and 37/38-40 mm Less Lethal projectile
