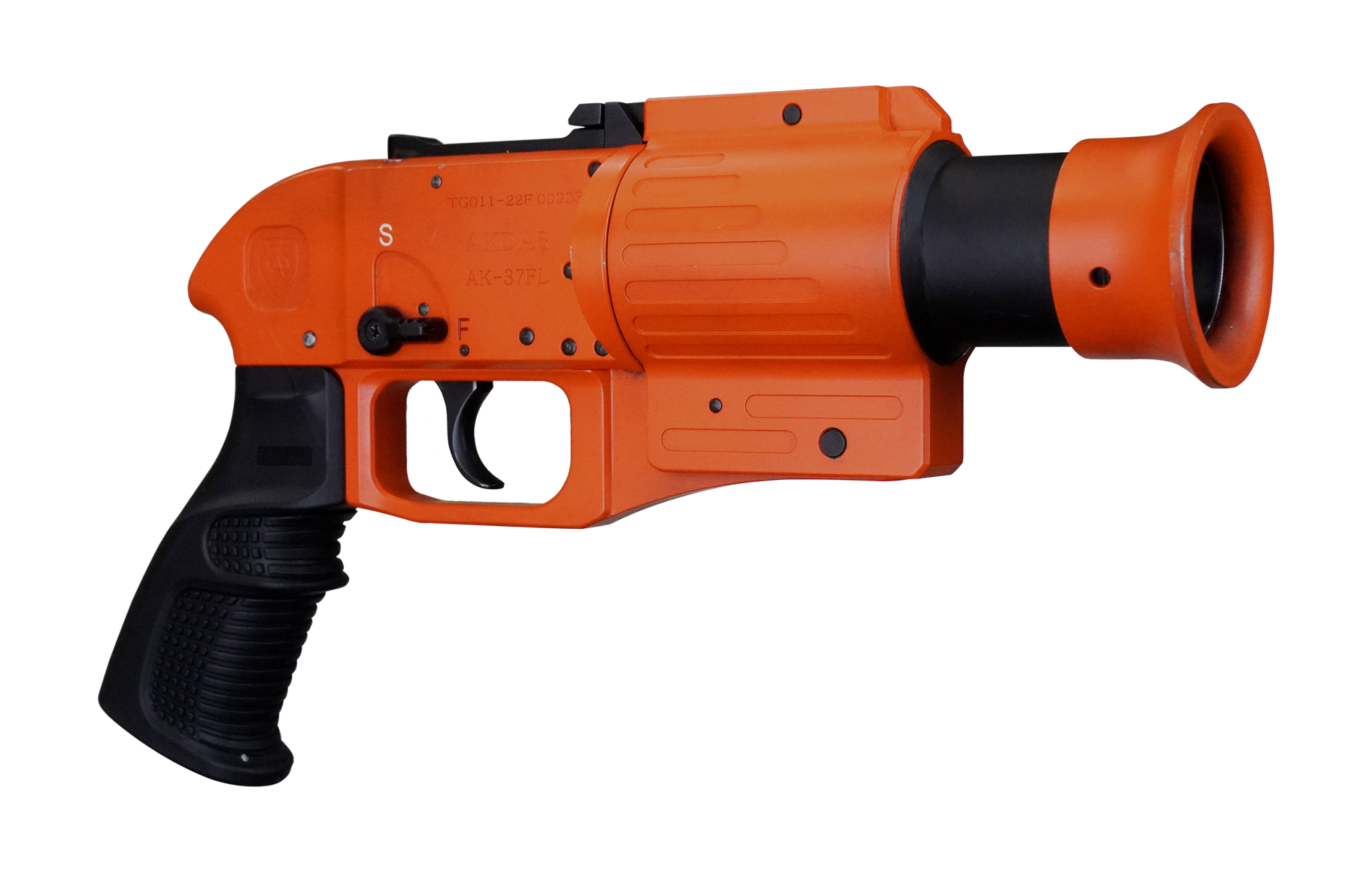

AK-37FGL _Launcher

3D View User Manual

It is forbidden to shoot HE ammunition and more of the same with AK-37 RL, these models are designed only to be used with gas cartridges.

BASIC SPECIFICATIONS

Light and ergonomic design for ease of use and transport
Hard wear resistant, hard chrome coated barrel with mid carbon alloy that provides a long barrel life span
Ambidextrous safety slide
Quick load in gun loading both for right- or left-handed users
Being ready to fire thanks to the double-action trigger system
Sling can be attached receiver
Design that protects shooters from the gas emerging after firing the gun

MAIN PARTS OF THE GUN

Assembly Groups

Operation

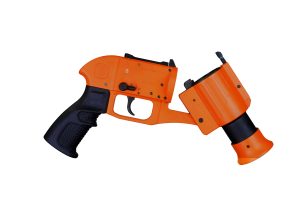

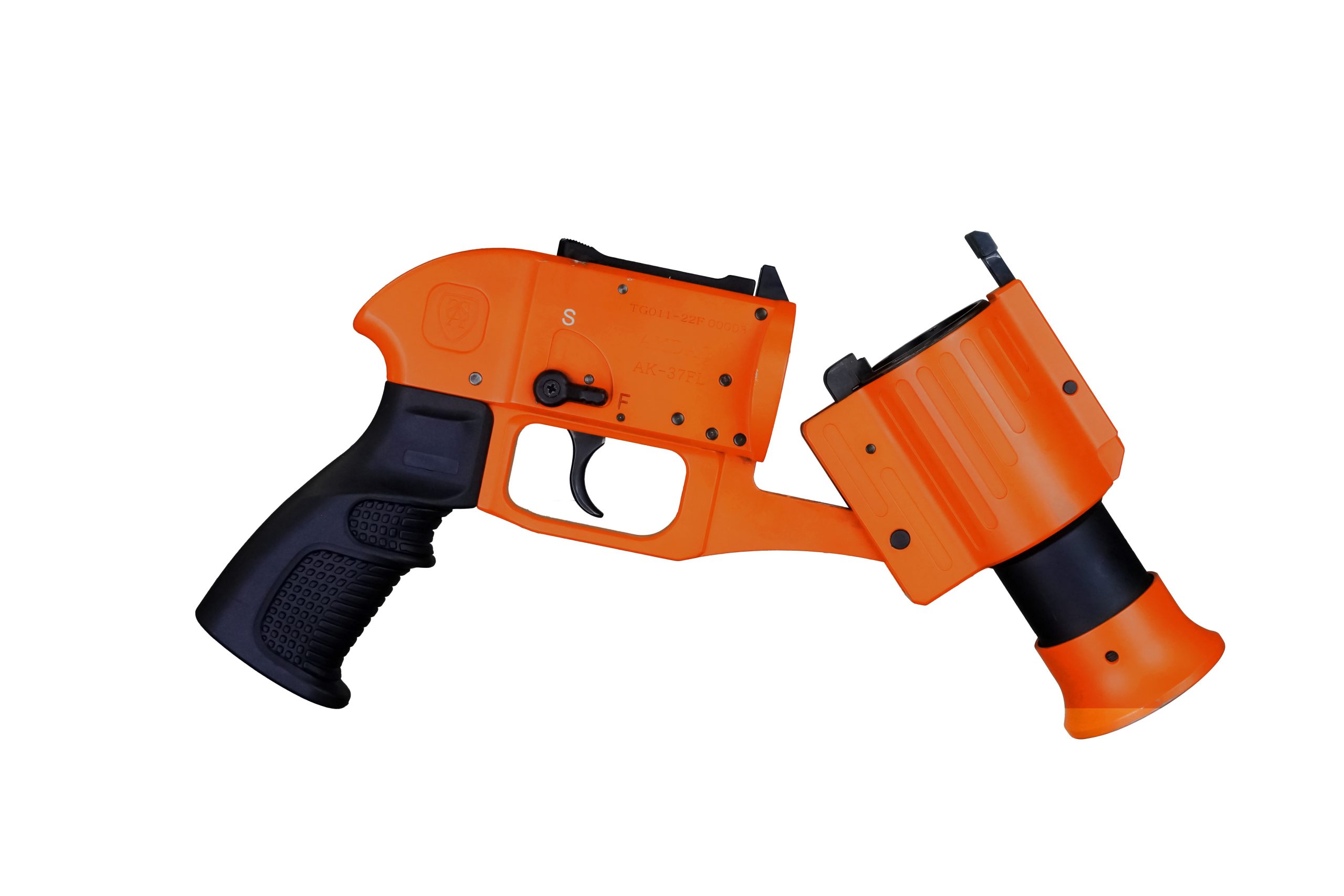

Release lever on the top of the receiver is depressed and barrel breaks open, and barrel is closed manually after loading/unloading. This gun has double-action trigger system that cocks the action automatically as the trigger is pulled. Safety is disengaged by sliding it down making the gun ready to fire
Caliber
37/38 mm
Barrel Length
127.2 mm (5'')
Barrel Type
Smooth Barrel
Total Length
305 mm (12")
Total Heigth
167.5 mm (6.6")
Width Max.
58 mm (2.3")
Weight (Unloaded)
1000 gr
Action
Single Break Action
Trigger System
Double-Action Trigger
Safety
Ambidextrous Slide Safety
Shooting Mode
Single Shot
Effective Range
max. 100 m
Trigger Pull Force
45 Newton
Stock
None only Pistol Grip
Shooting Velocity
5-6 Rounds / Minute
Barrel And Receiver Material
Barrel 4140 Steel, Receiver 7075 Aluminum
Type Of Ammunition
37/38 mm Gas Cartridges
Sling
NATO QD Tactical

AK-37FGL Launcher
