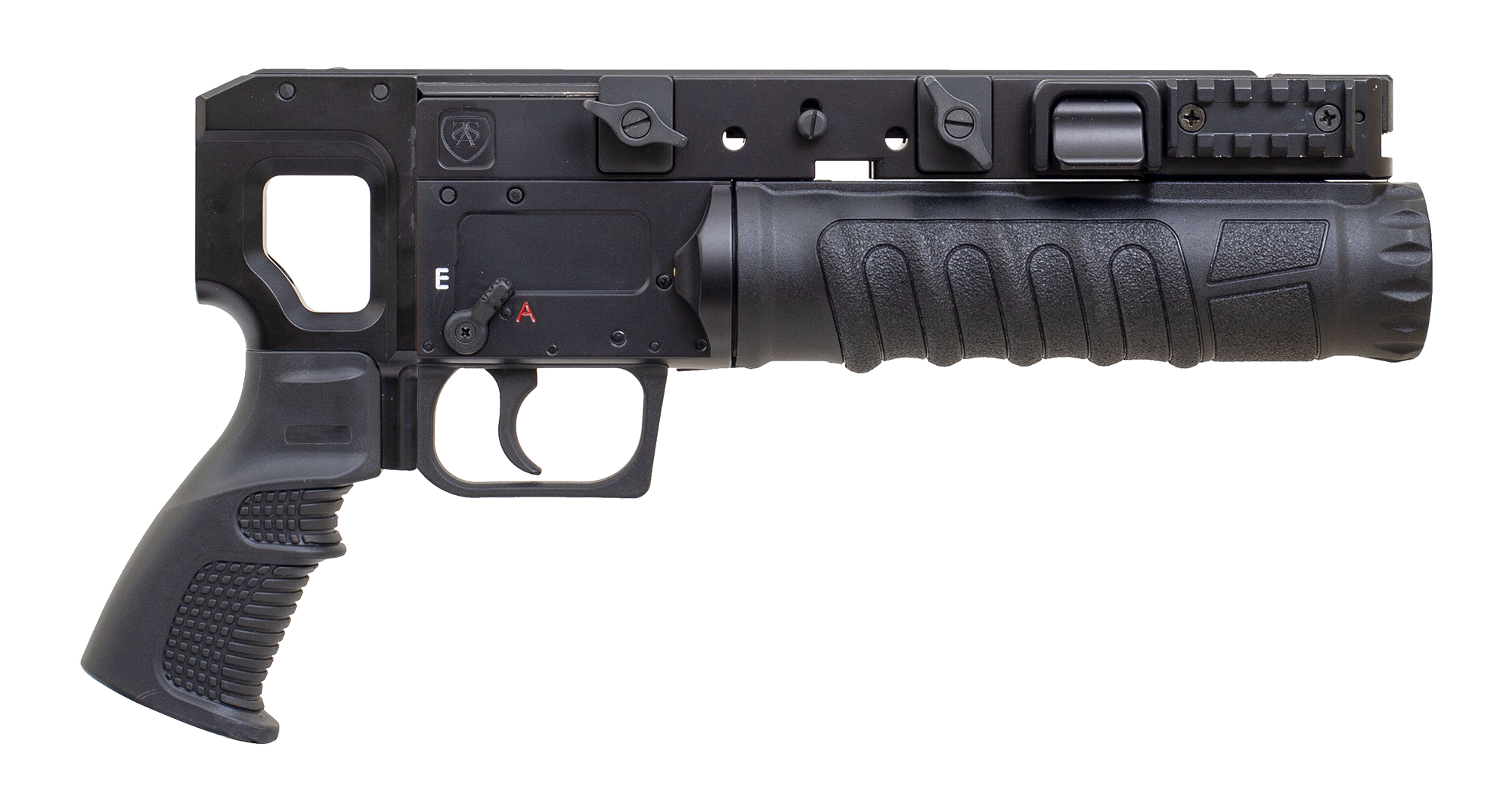

AK-37UBFL _Launcher

3D View User Manual

AK-37 UBFL

It provides ease of use and portability due to its lightweight and ergonomic design.
It features a unique design for both right and left-handed use, including a safety lever and double-sided loading.

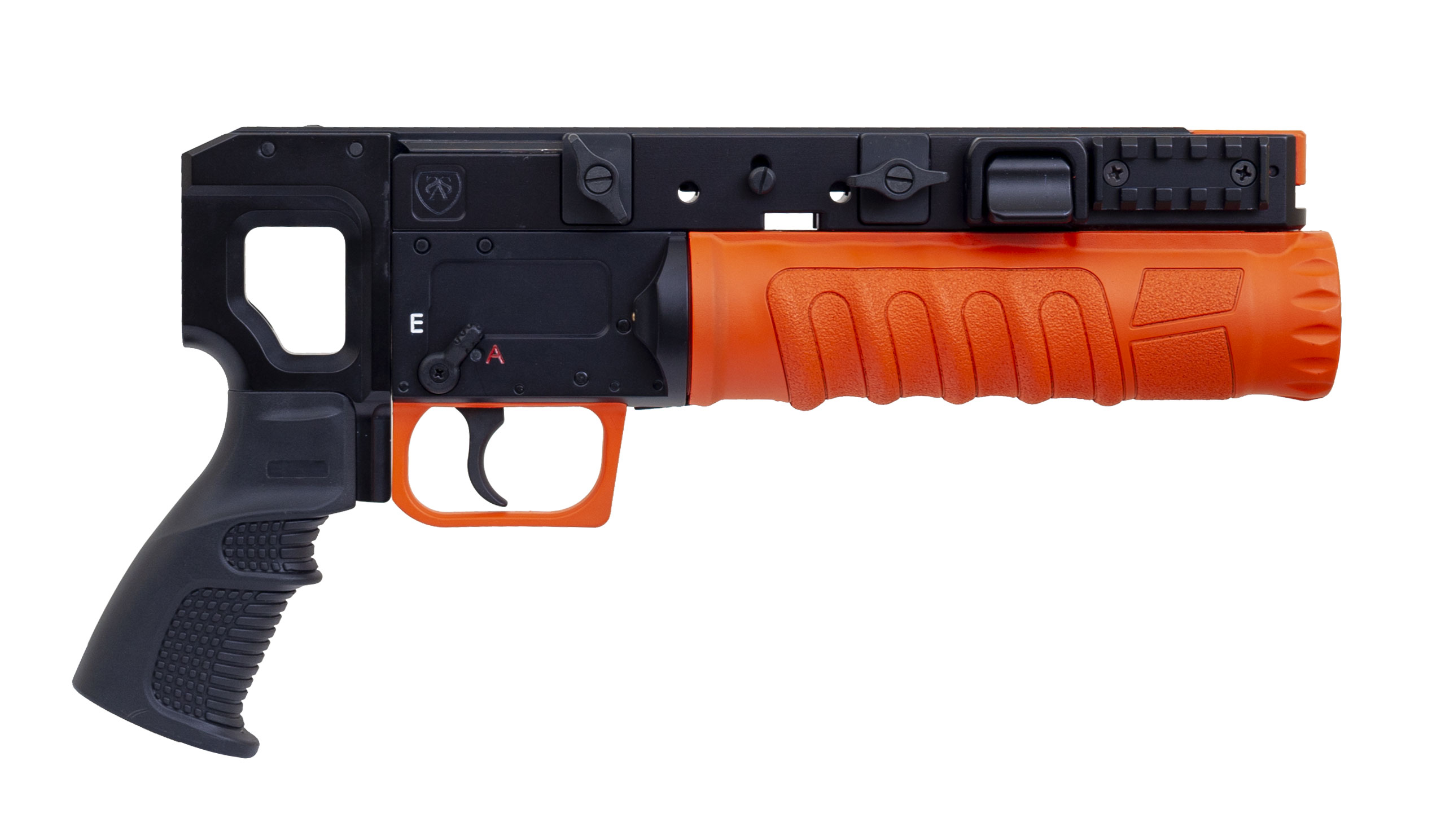

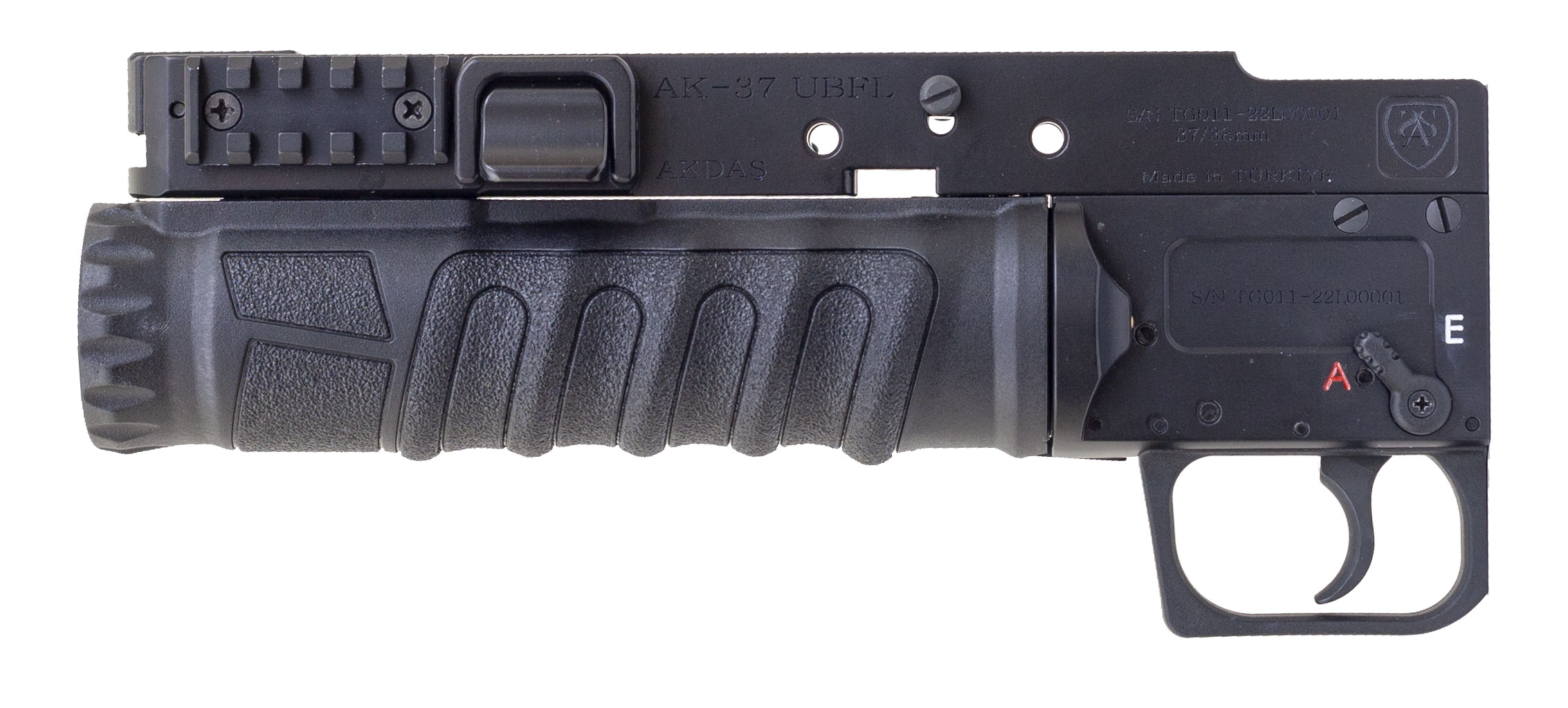

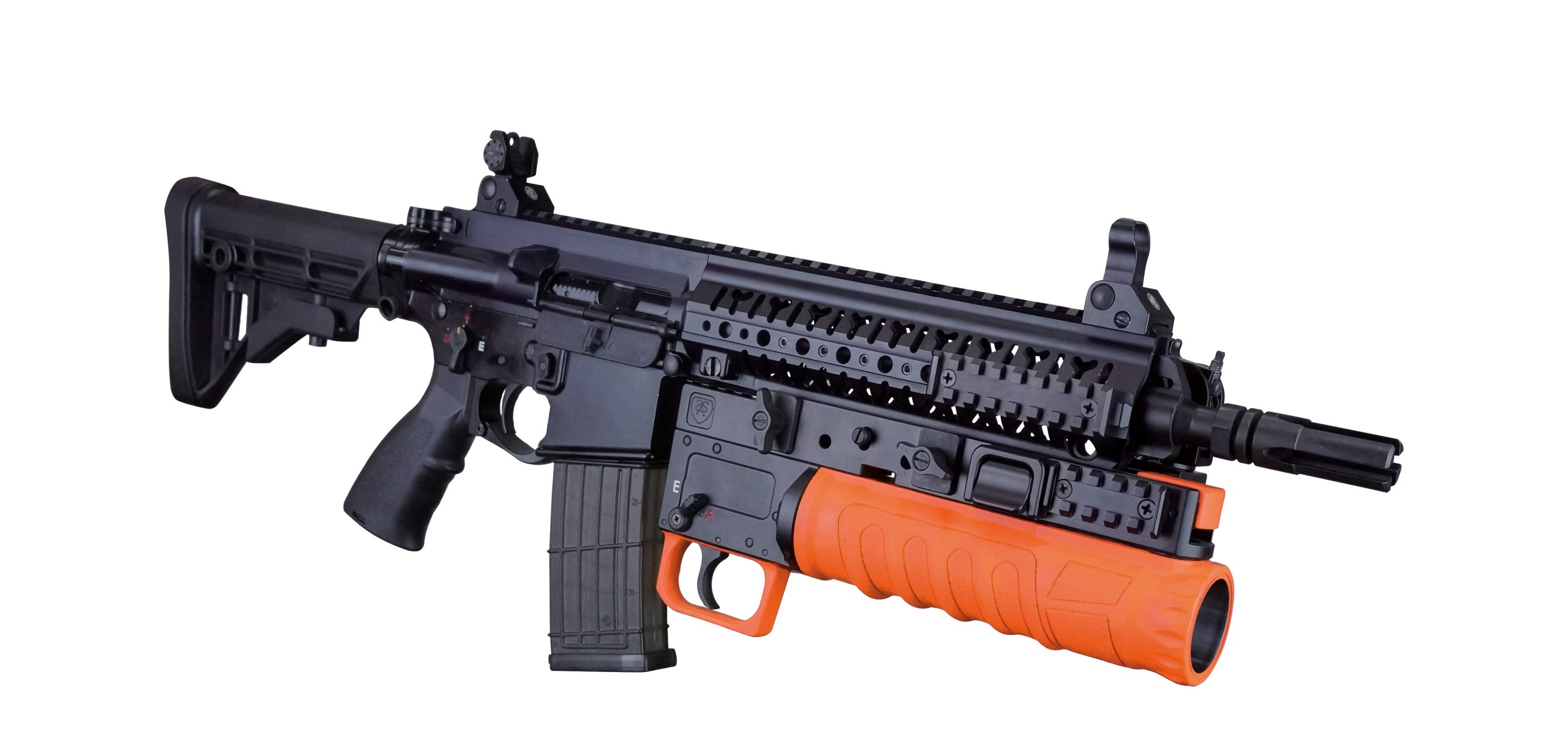

In addition to being mounted on an infantry rifle, it can also be used as a standalone gas gun.

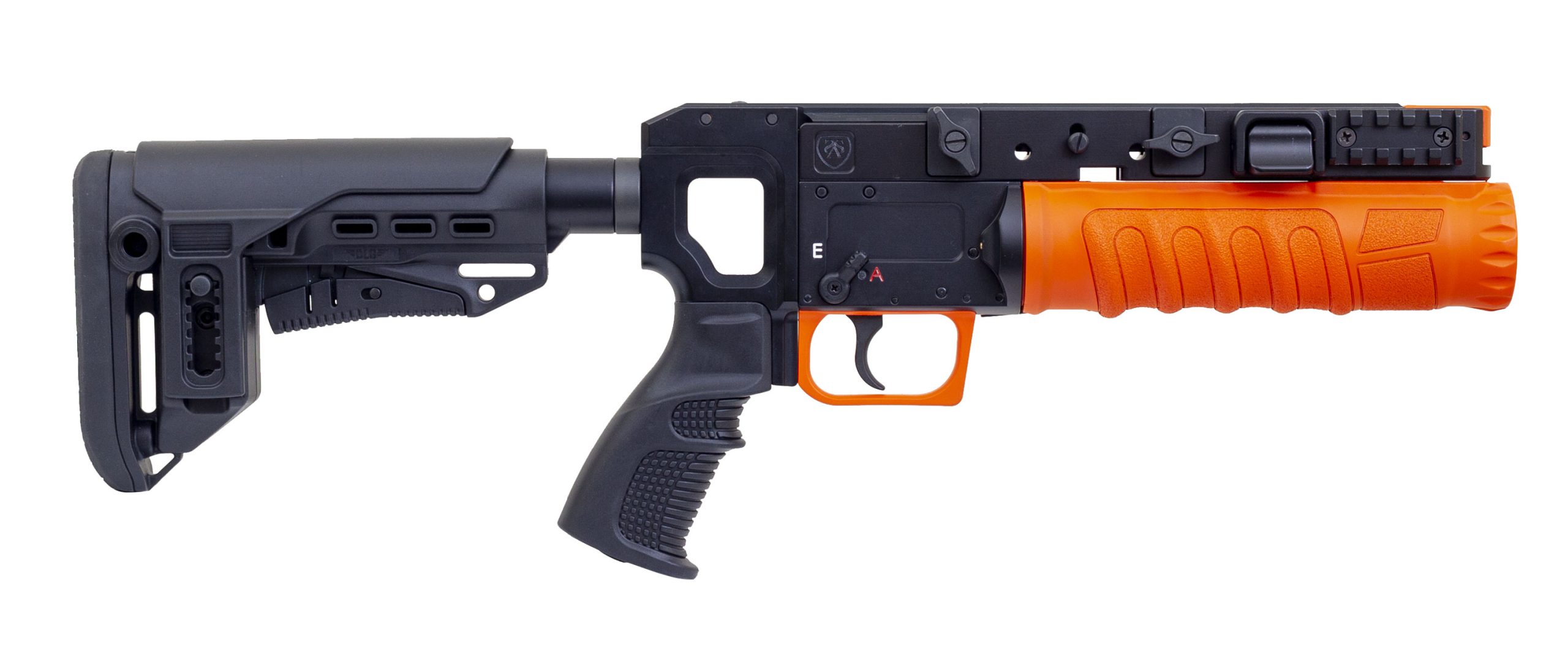

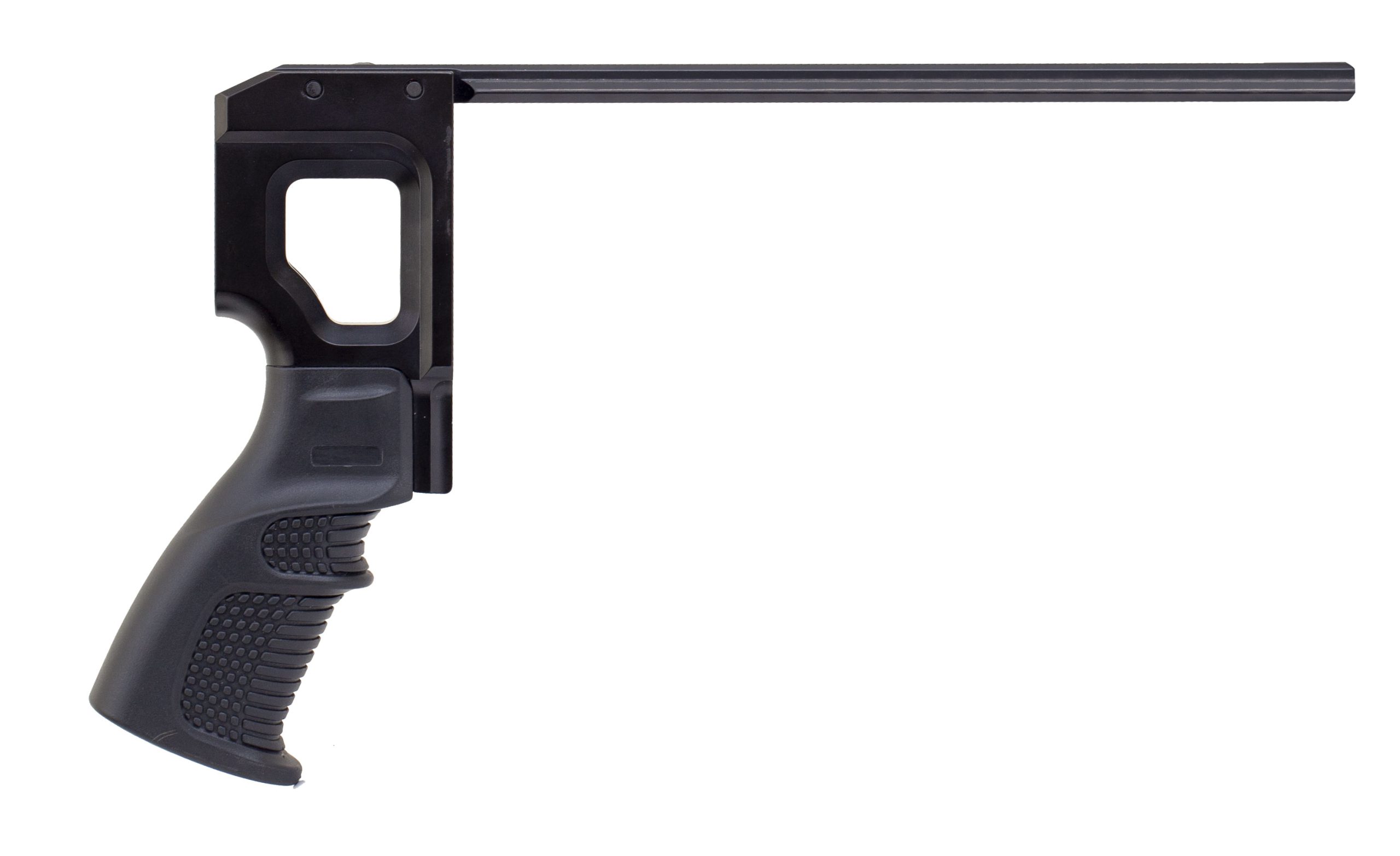

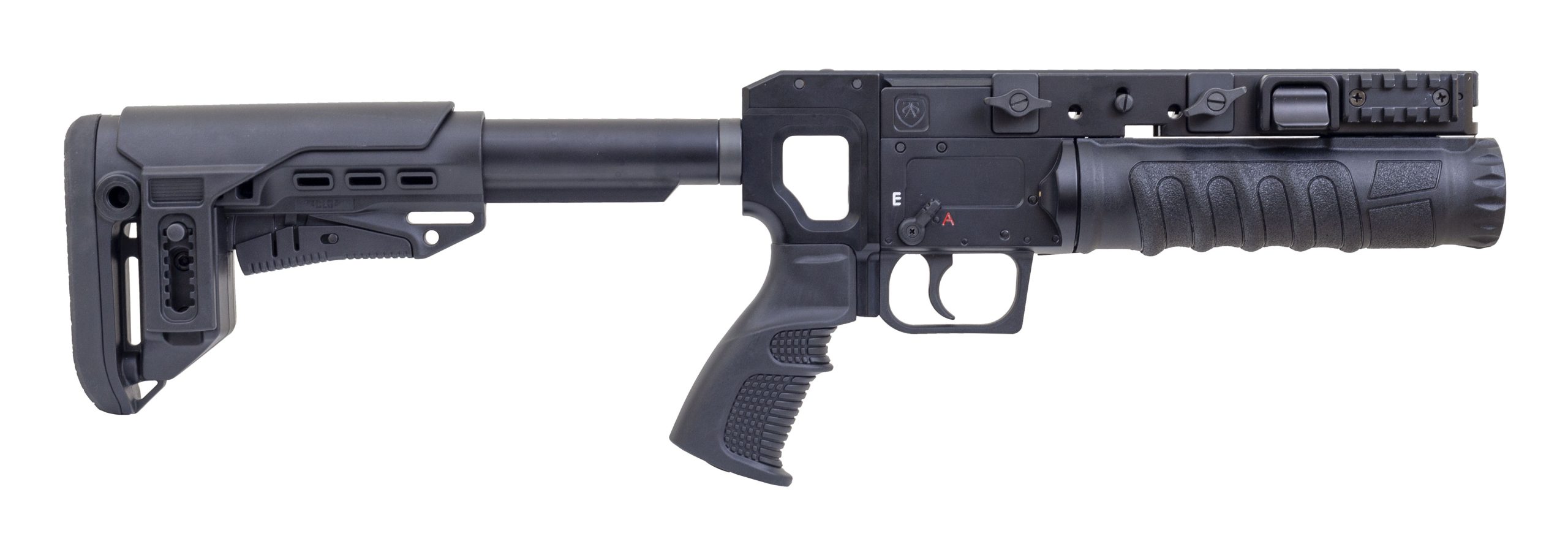

It comes with a launcher pistol that includes a telescopic stock.
It has a double-sided indicator to show whether the gas launcher is loaded or empty.

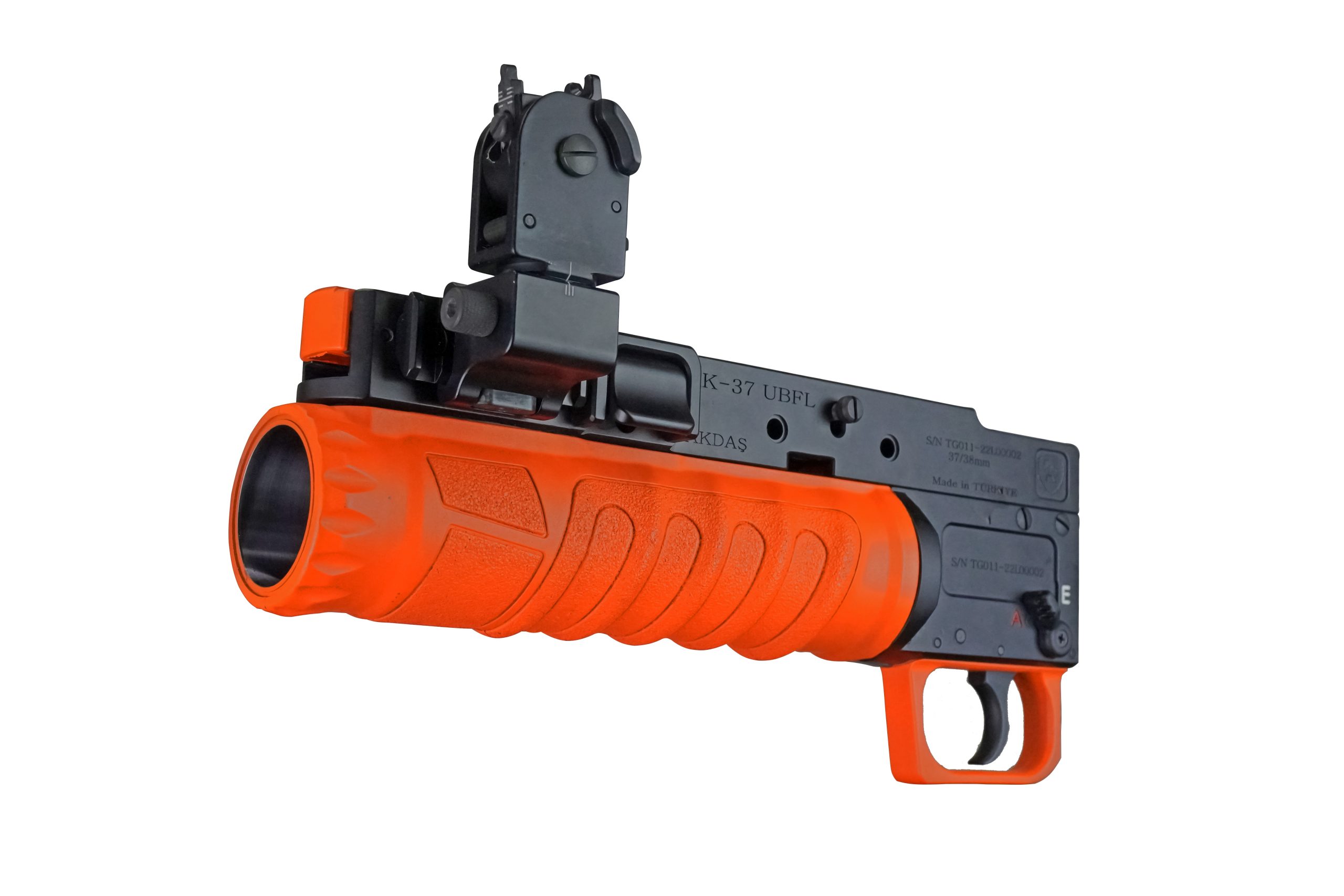

It has a mechanical sight and the capacity for night firing, which can be mounted on both sides.
The barrel is made of a medium-carbon alloy with a hard chrome coating, providing high resistance to wear and a long barrel life.
It includes Picatinny rails on the top and sides, allowing for additional equipment to be attached

Caliber
7/38mm - 40 mm
Barrel Length
7.5" (190 mm) or 10" (254 mm)
Total Length standalone (telescopic stock open)
24.5" (622 mm) or 27" (685 mm)
Total Length standalone (telescopic stock closed)
21.5" (546 mm) or 24" (610 mm)
Total Length without stock
275 mm (10.8") or 390 mm (13")
Weight (standalone-empty)
max. 2510 gr
Weight (attached to rifle-empty)
max. 1500 gr
Sight system
50-150 m (25 m Intervals)
Shooting mode
Single Shot
Shooting velocity
5-6 rounds/minute
Effective range
50-150 m
Trigger pull force
25-35 Newton
Coking force
150-200 Newton
Barrel life span
5000 rounds
Shooting pattern
Into 10m diameter at 130 m
Type Of Ammunition
37/38 mm Flare & Gas Cartridges
