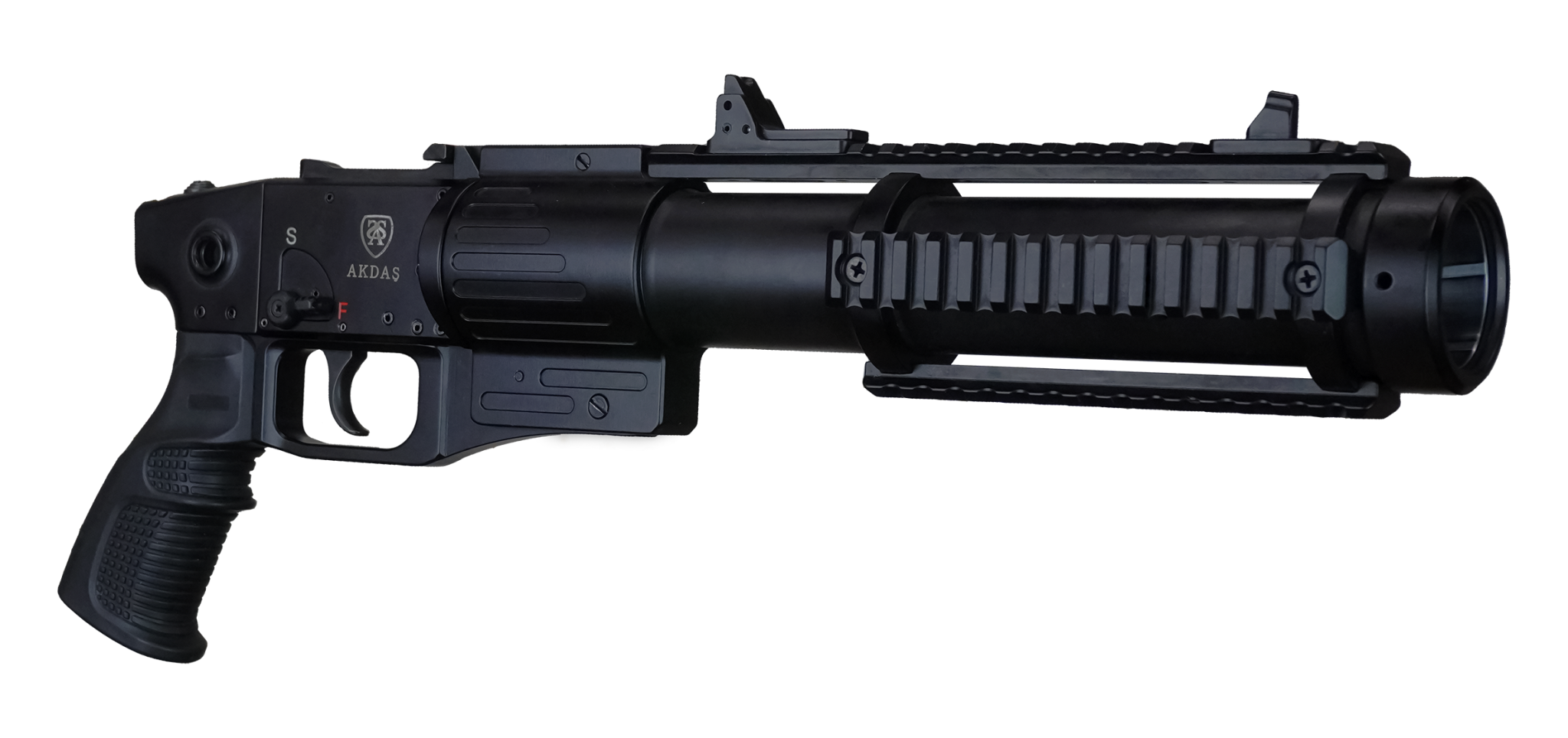

AK-40RFL _Launcher

3D View User Manual

It is forbidden to shoot HE ammunition and more of the same with AK-37RL/AK-40RFL as these models are designed only to be used with gas cartridges.

BASIC SPECIFICATIONS

Light and ergonomic design for ease of use and transport
Hard wear resistant, hard chrome coated barrel with mid carbon alloy that provides a long barrel life span
Picatinny rails on top and sides that allow various additiona I equipment
Ambidextrous safety slide
Telescopic stock that can be easily detached thanks to the lever at the top of the receiver
Capability of being carried or fired without telescopic stock in narrow places like the interior of armored vehicles
Quick load in gun loading both for right- or left-handed users
Being ready to fire thanks to the double-action trigger system
Sling can be attached on both the stock and receiver
Design that protects shooters from the gas emerging after firing the gun
Ease of targeting and shooting thanks to the foldable vertical grip located under the barrel

MAIN PARTS OF THE GUN

Assembly Groups

Operation

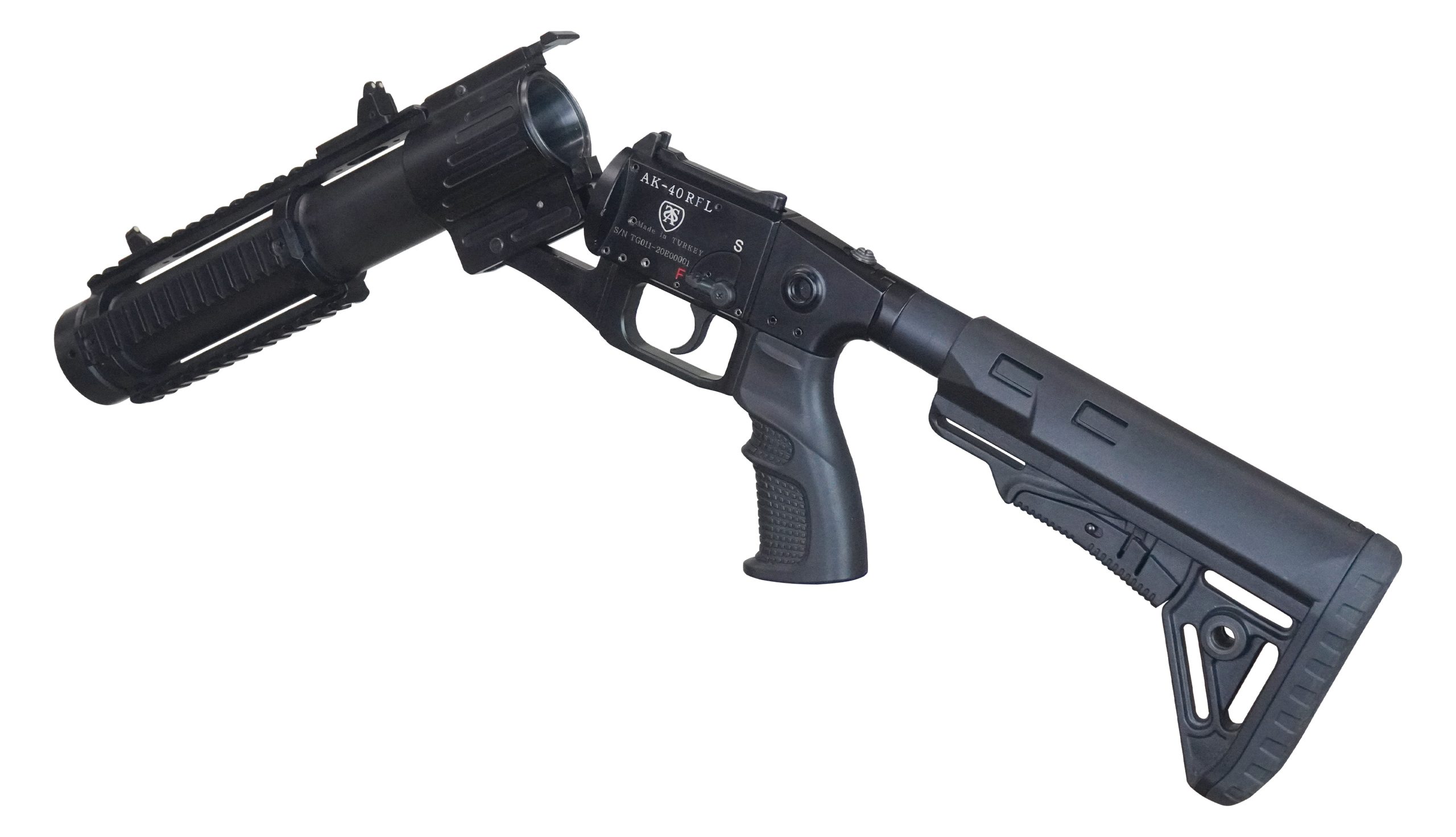

Release lever on the top of the receiver is depressed and barrel breaks open, and barrel is closed manually after loading/unloading. This gun has double-action trigger system that cocks the action automatically as the trigger is pulled. Safety is disengaged by sliding it down making the gun ready to fire
Caliber
37/38 or 40 mm
Barrel Length
305 mm / 340 mm
Total Length (Telescopic Stock Open)
735 mm / 770 mm
Total Length (Telescopic Stock Closed)
680 mm /715 mm
Weight (Unloaded)
2200 gr / 2500 gr
Action
Single Break Action
Trigger System
Double-Action Trigger
Safety
Ambidextrous Slide Safety
Sight System
Low Position and 80/100/130 Meter Intervals
Shooting Mode
Single Shot
Effective Range
100 m
Trigger Pull Force
45 Newton
Stock
Detachable Telescopic
Shooting Velocity
5-6 rounds/minute
Barrel And Receiver Material
Barrel 4140 Steel, Receiver 7075 Aluminium
Type Of Ammunition
37/38 or 40 mm gas cartridges
Sling
NATO QD Tactical

AK-40RFL Launcher
