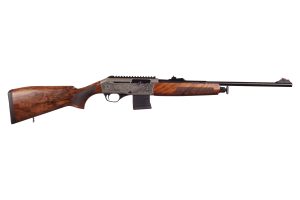

ALCOR-223 Semi-Auto Hunting Rifle
3D View
Alcor 223 is a seıiıi-automatic rifle designed by Akdaş Silah A.Ş. It is light, ergonomic and practical.
Alcor 223 has different barrel lengths suitable far different stock systems according to tfıe area Öf use and need. Picatinny rails on the receiver allow the use of compatible accessories. This .223 calibre semi-automatic rifle provides more stable and accurate shooting.
BASIC FEATURES
– Lightweight and ergonomic design far ease of handling and transport.
– Hard chrome plated barrel alloy with high wear resistance far long barrel life
– Different barrel lengths far Different uses
– Picatinny rail on the top of receiver far attaching and using additional equipment
Technical Specifications
-
Caliber
0.223 -
Barrel Material
AISI-SAE 4140 ( 42CrMo4) -
Barrel Finish
Chrome Plated -
Receivers Materrial
7075 T6 Aluminium Alloy -
Magazine Capacity
5-10 Rnd. Removable Magazine -
Barrel Length
470 mm (18.5") -
Total Length
1010 mm (39.8") -
Weight (Wo Magazine)
2900 gr (6.4 lb) -
Operation
Gas Operated Semi Automatic -
Trigger Pull Force
35-65 Newton -
Cocking Force
40-100 Newton -
Safety
Trigger Block -
Sight
Manual Sight -
Height
approx 7.9" (200 mm) -
Width
approx 1.6" (40 mm) -
Range
400 m - 1312 ft (Effective) -
Shot Pattern
1 MOA / 100 m -
Muzzle Velocity
1023 m/s (±50m/s) (3354 ft/s) -
Barrel Profile
Saami Z299-4, 6 Hroves, 1/7" RH Twist Rate
