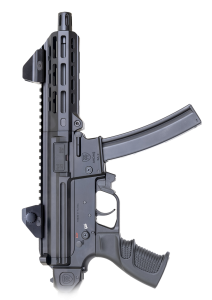

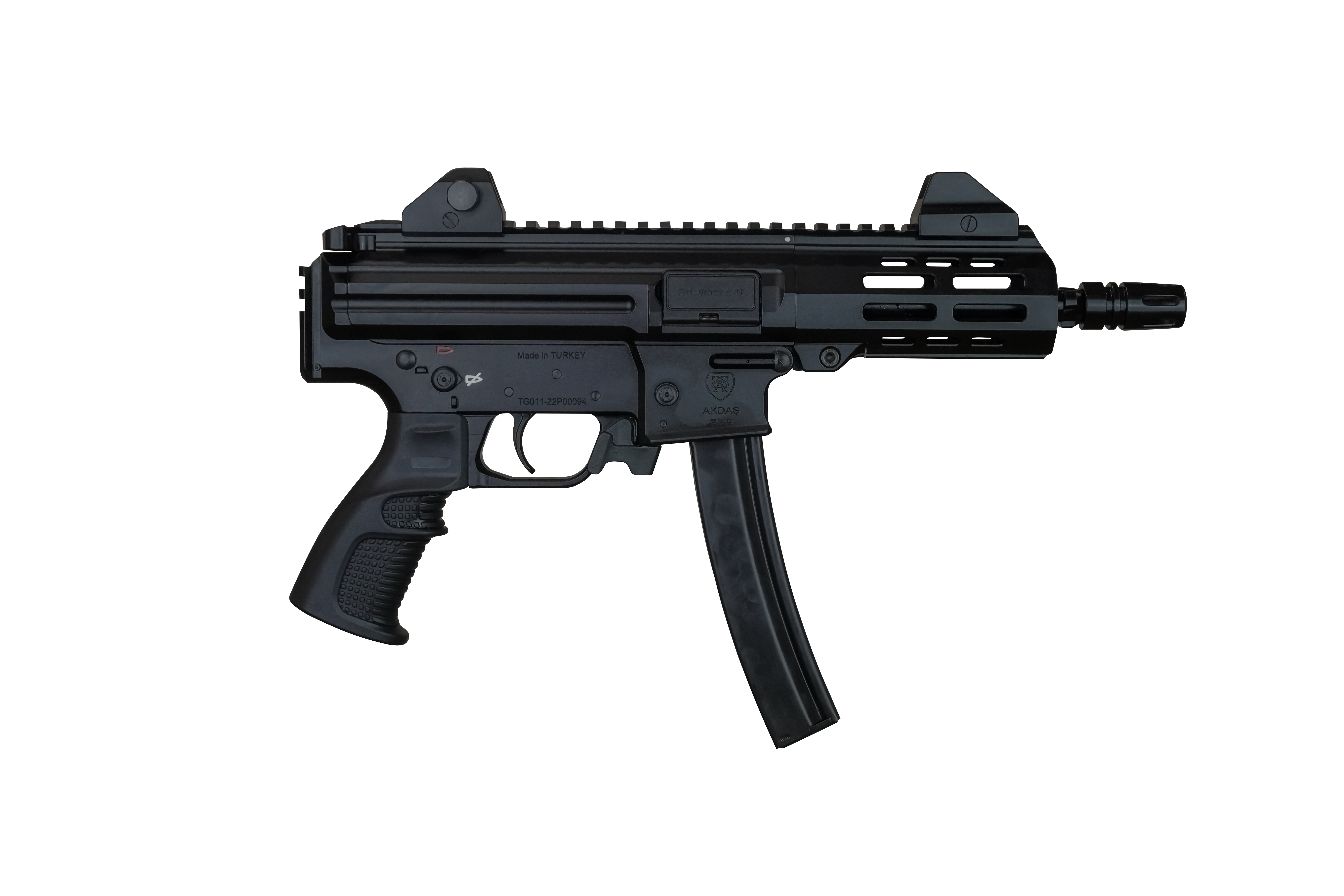

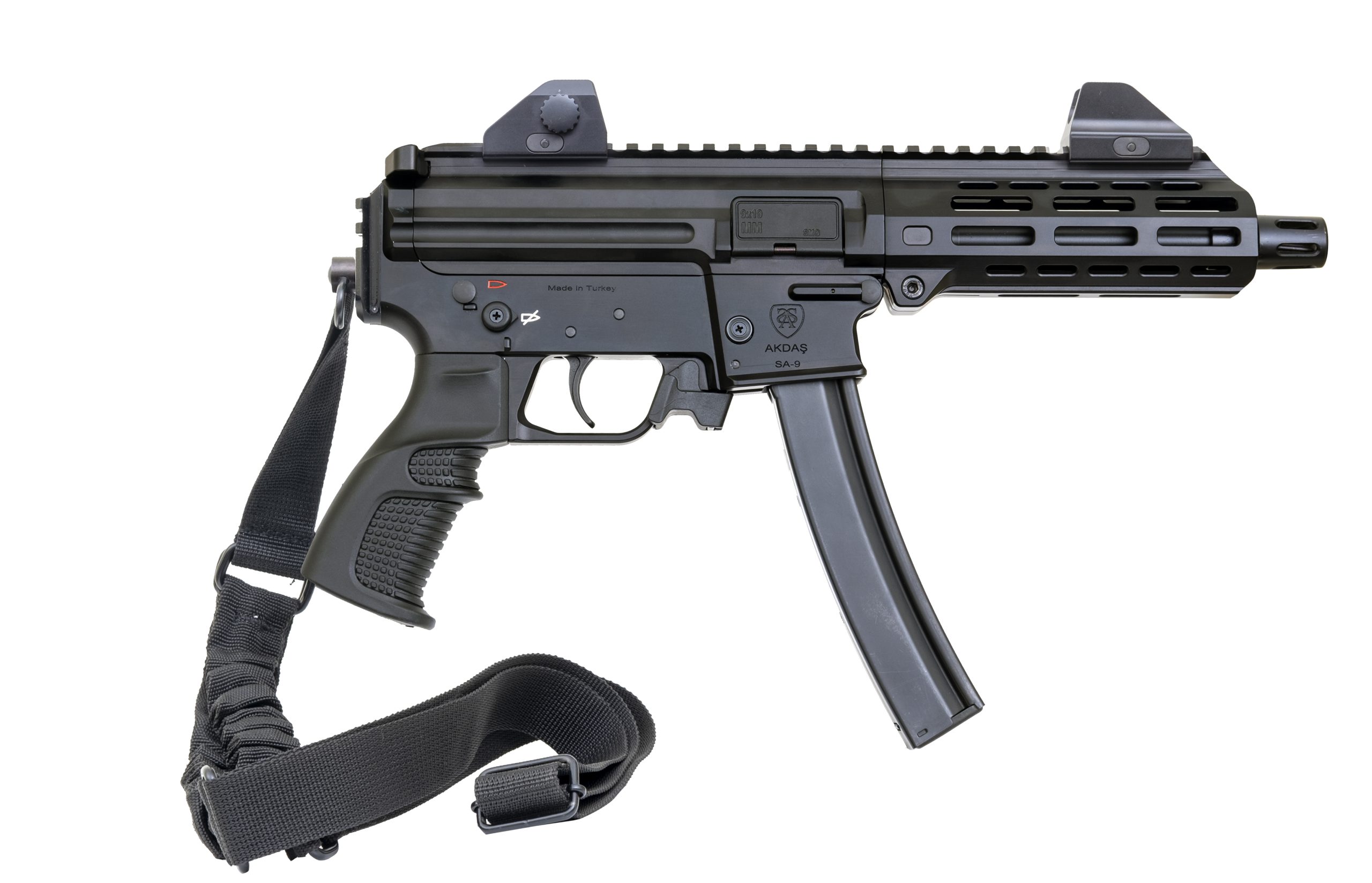

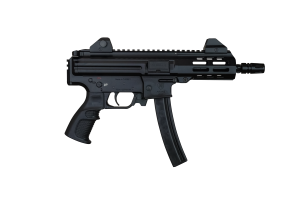

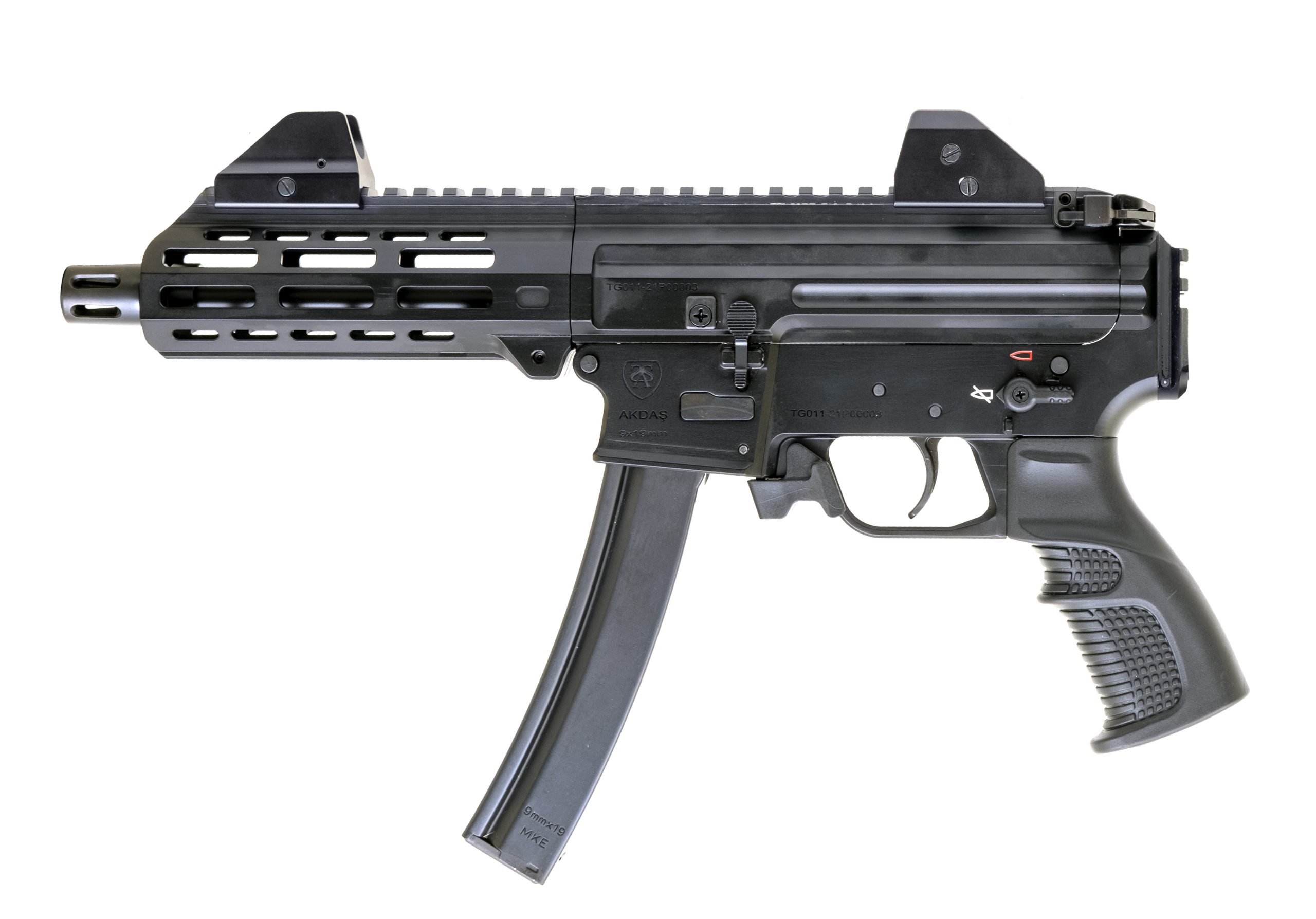

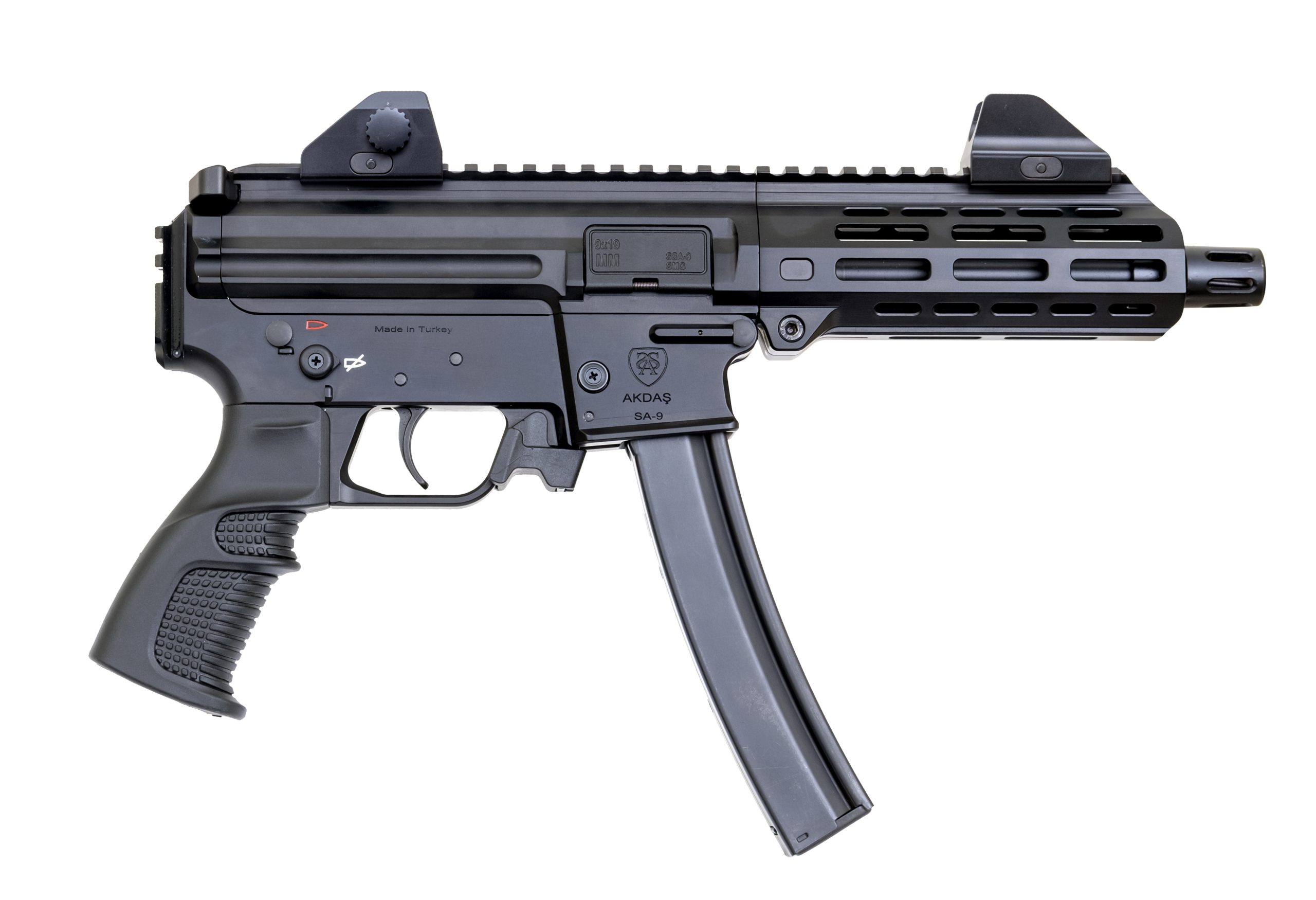

SA-9 _{Semi-Auto Pistol}

3D View User Manual

Lightweight and ergonomic for ease of use and transportation
Chrome-plated steel barrel with high abrasion resistance
Barrel with 3 different barrel lengths to suit different needs
Use without a stock thanks to the overhead spring system

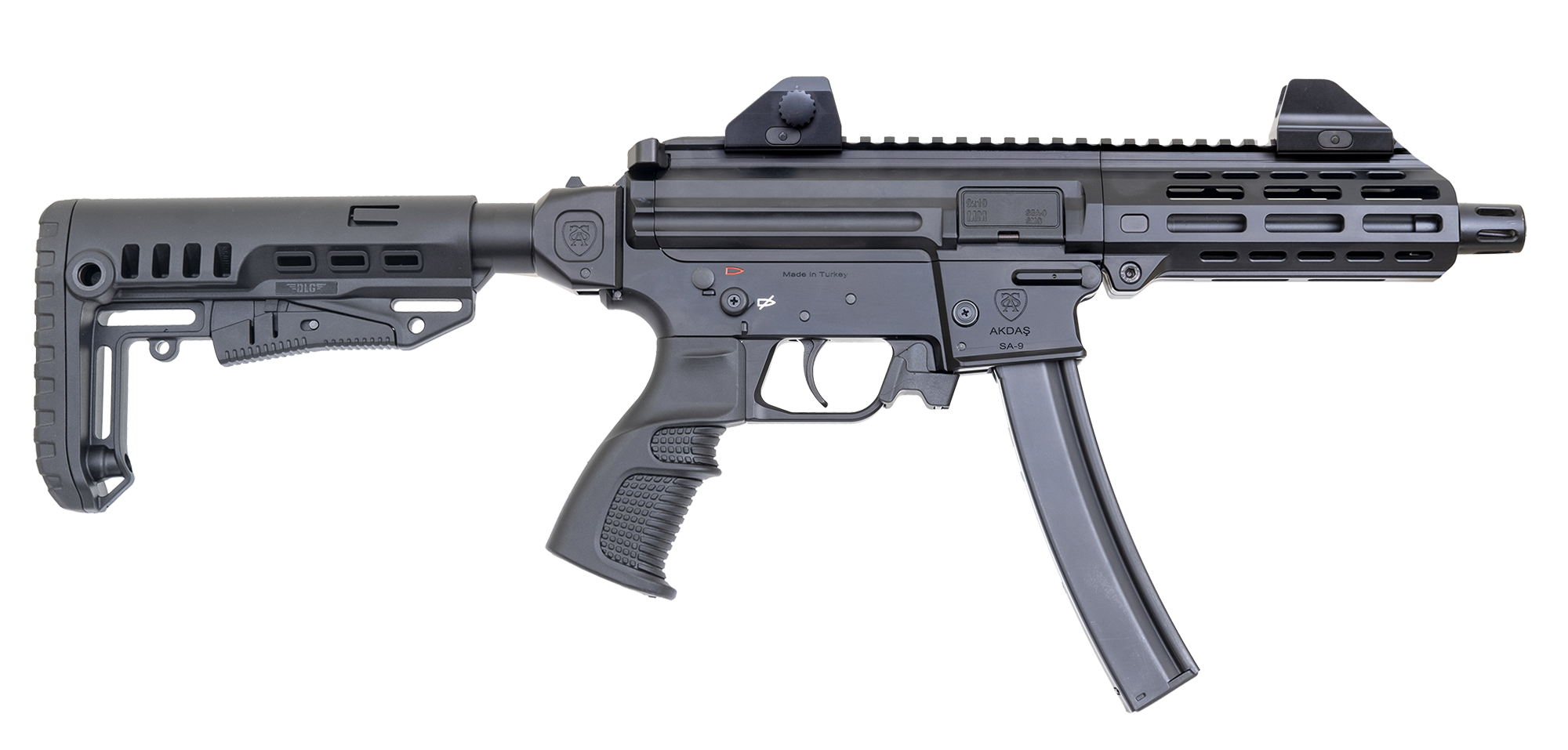

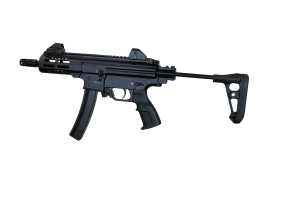

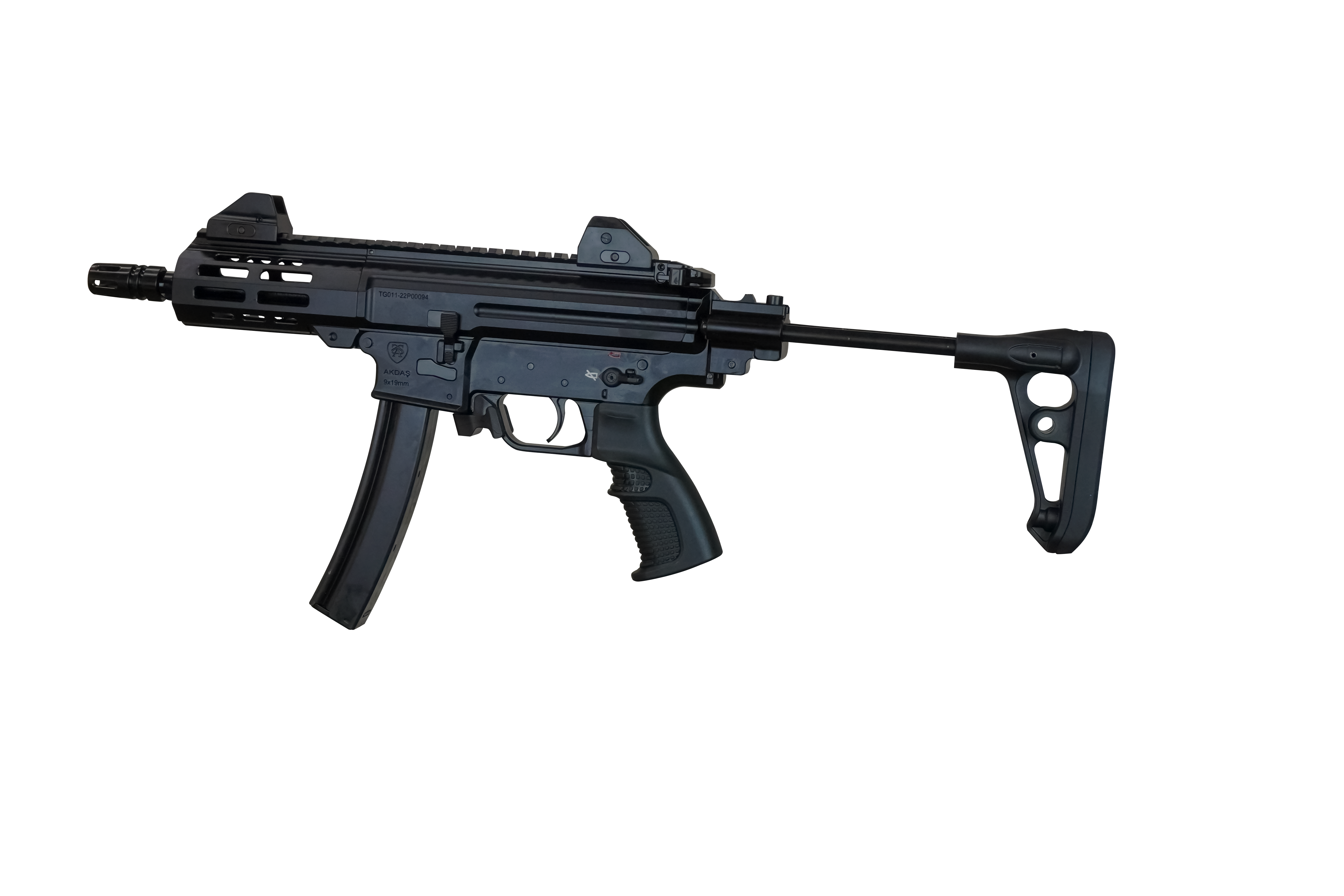

Possibility to use with folding stock or telescopic stock
Picatinny rails on the bottom, top and sides of the barrel and on the upper receiver, allowing the attachment and use of additional equipment
Can be sold to civilians with the necessary permits

Caliber
9x19 mm
Barrel Material
AISI-SAE 4140 (42CrMo4)
Barrel Finish
Chrome Plated
Receivers Materrial
7075 T6 Aluminium Alloy
Muzzle
1/2-28 TPI, 3 lugged for flash hiders & suppressors
Flash Hiders
1.80" (46 mm)
Magazine Capacity Options
102030
Barrel Length
6.5" (165 mm)8" (203 mm)10" (254 mm)12" (305 mm)
Total Length
min. 14.70" (374 mm)
Weight
min. 2200 gr (4.85 lb)
(Without Magazine)
Operation
Blowback Close Bolt
Mode of Operation
Semi - Automatic
Fire Selector Position
Ambidextrous
Trigger Pull Force
5.5 - 10 lb
Safety
Hammer Block
Sight
Mechanic Sight
Height
approx. 8.58" (218 mm)
Width
approx. 2.26" (57.5 mm)
Range
100 m - 330 ft (Effective)
Shot Pattern
6 MOA (25 mm)
Muzzle Velocity
400 m/s (1330 ft/s)
Barrel Profile
Saami Z299 3 Standard Luger 9 mm, Luger Plus 1:10" 6 grooves right hand twist.

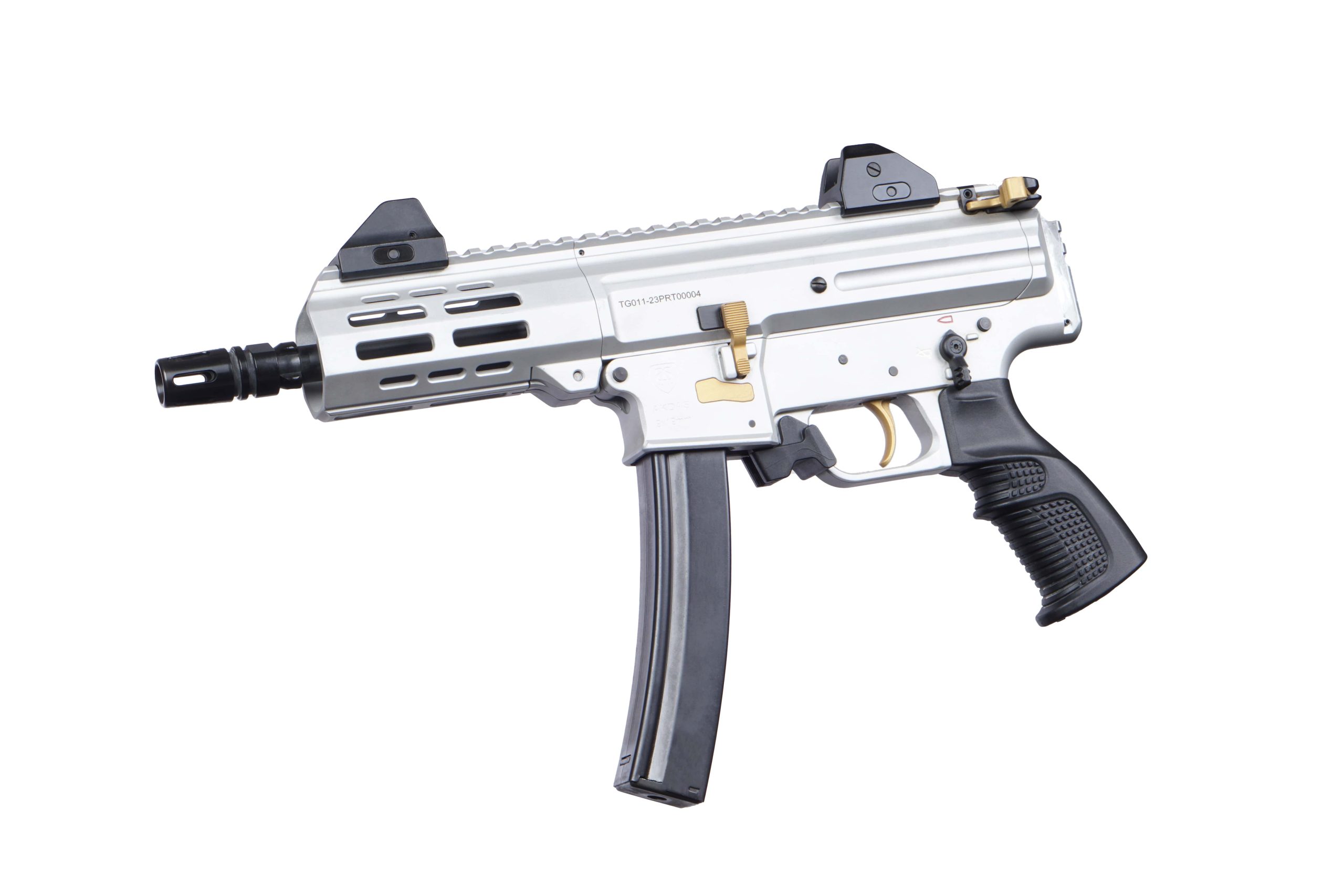

SA-9 Semi-Auto Pistol
